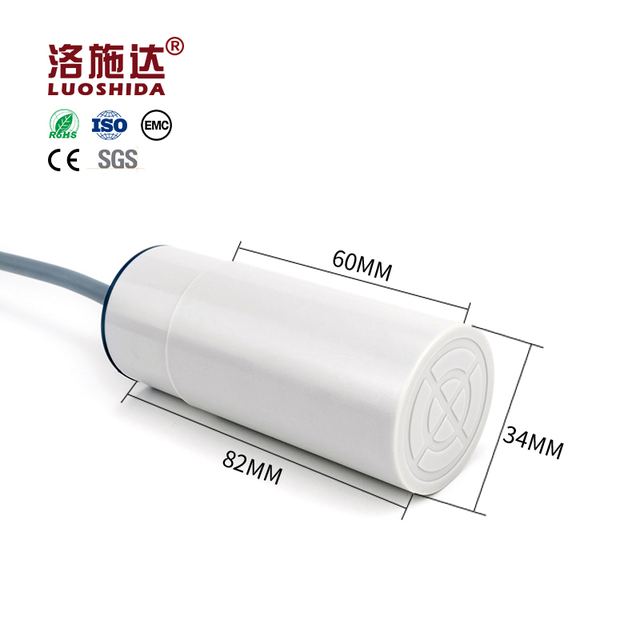

Plastic-D34 Capacitive Proximity Sensor for Plastic Pipe Fitting NPN/PNP Output Flush Mounting
Model D34
Overview
Plastic-D34 Capacitive Proximity Sensor for Plastic Pipe Fitting NPN/PNP Output Flush Mounting, listed under Proximity Sensors by Luoshida Sensor (dongguan) Co., Ltd in Dongguan, Guangdong. The listing gives certification CE RoHS ISO, response time <1.5 ms and working temperature -25°C to 70°C.
Technical specifications
| Certification | CE RoHS ISO |
|---|---|
| Response time | <1.5 ms |
| Working temperature | -25°C to 70°C |
| output | npn/pnp |
| switching hyseresis | <15%(sr) |
| protection category | ip67 |
| Detection distance | 25mm |
| Supply voltage | 10-40VDC |
| repeat accuracy | <5.0%(sr) |
| temperature drif | <10%(sr) |
| housing material | abs |
| Operating Temperature | -25℃ To 70℃ |
| Material | ABS |
| Size | M8*45mm |
| Mounting | flush or non-flush |
| Mounting way | flush or non-flush |
