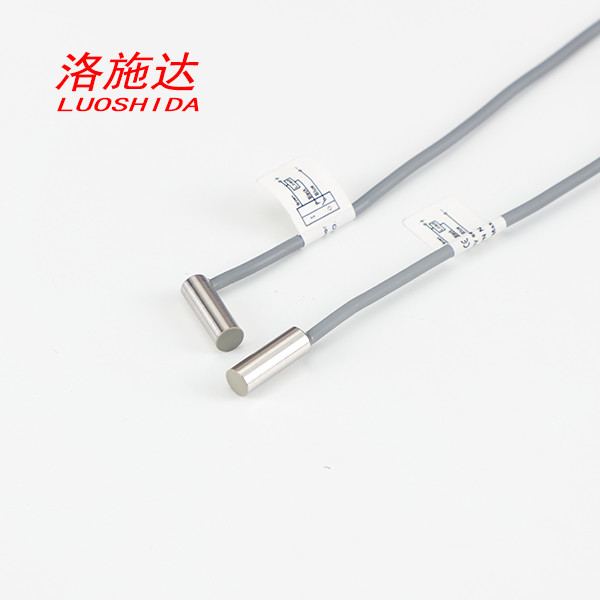

Mini Shorter Cylindrical Inductive Proximity Sensor DC 3 Wire 6.5mm With Cable Type

Mini Shorter Cylindrical Inductive Proximity Sensor DC 3 Wire 6.5mm With Cable Type

Overview

Mini Shorter Cylindrical Inductive Proximity Sensor DC 3 Wire 6.5mm With Cable Type supplied by Luoshida Sensor (dongguan) Co., Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE ROHS; Size D6.5*18mm; Material Stainless Steel; Mounting Flush. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

CertificationCE ROHS
SizeD6.5*18mm
MaterialStainless Steel
MountingFlush
Distance1mm Or 2mm
Sensing Distance Sn(mm)1mm / 2mm
Housing MaterialStainless steel
With or Without LED● with LED
Operating Voltage10-30VDC
No Load Current<10mA
Max.Load Current150mA
Leakage Current<0.01mA
Voltage Drop<1.5V
Switching Hysteresis<15%(Sr)
Repeat Accuracy<3.0%(Sr)
Protection CategoryIP67
Operating Temperature-25°C- +70°C
Temperature Drift<10%(Sr)
Short Circuit ProtectionYES
Overload Trip Point180mA
Shock/VibrationIEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active FacePBT
ConnectionD3 3*0.15 PVC 2M
SeriesMini-Shorter Inductive proximity sensor
Output functionNPN/PNP NO/NC
Applicationmetal detection or distance detection
