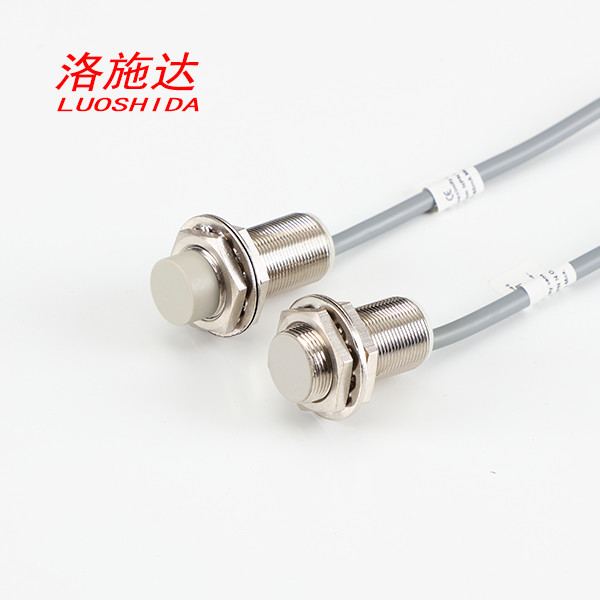

Metal Cylindrical Inductive Proximity Sensor DC 3 Wire M18 Shorter Body For Metal Detection
Overview
Metal Cylindrical Inductive Proximity Sensor DC 3 Wire M18 Shorter Body For Metal Detection supplied by Luoshida Sensor (dongguan) Co., Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE ROHS; Type Proximity Sensor; Size M18*35mm; Material Metal. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE ROHS |
|---|---|
| Type | Proximity Sensor |
| Size | M18*35mm |
| Material | Metal |
| Output | Switching Transducer |
| Protection Degree | IP 67 |
| Mounting | shielded |
| Sensing Distance Sn(mm) | 5mm / 8mm |
| Housing Material | Brass nickel plated |
| With or Without LED | ● with LED |
| Operating Voltage | 10-30VDC |
| No Load Current | <10mA |
| Max.Load Current | 150mA |
| Leakage Current | <0.01mA |
| Voltage Drop | <1.5V |
| Switching Frequency | 1KHz / 500Hz |
| Response Time | 0.2ms / 0.5ms |
| Switching Hysteresis | <15%(Sr) |
| Repeat Accuracy | <3.0%(Sr) |
| Protection Category | IP67 |
| Operating Temperature | -25°C- +70°C |
| Temperature Drift | <10%(Sr) |
| Short Circuit Protection | YES |
| Overload Trip Point | 180mA |
| Shock/Vibration | IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 |
| Material Active Face | PBT |
