Overview

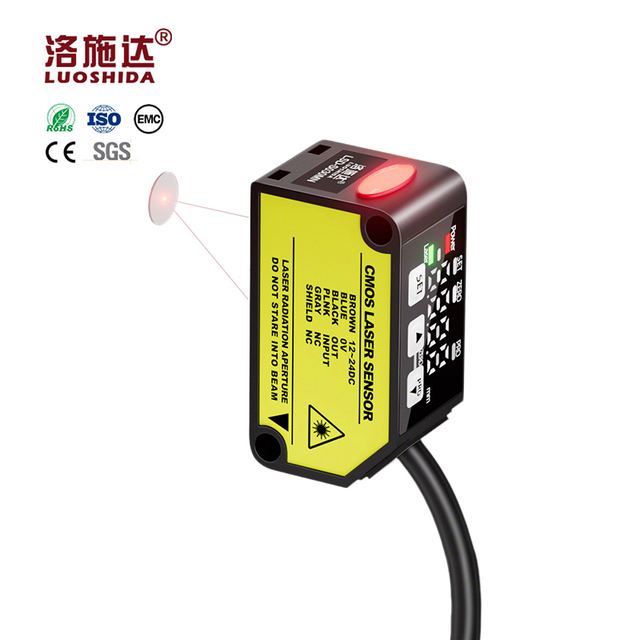

Luoshida Sensor (Dongguan) supplied by Luoshida Sensor (dongguan) Co., Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE RoHS ISO; Detection Center Distance 400mm; Temperature Coefficient 0.03%F.S./°C; Power Supply Voltage 12-24VDC ±10%. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	CE RoHS ISO
Detection Center Distance	400mm
Temperature Coefficient	0.03%F.S./°C
Power Supply Voltage	12-24VDC ±10%
Max Input Current	50mA
Leakage Current	≤0.1mA
Residual Voltage	≤1.5V (@input Current ≤50mA)
Voltage Analog Output	Output Range 0-5V, Output Impedance = 100Ω
Parameter Item	Detailed Specification
Temperature characteristics	0.03%F.S./°C
Short-circuit protection	Built-in auto-reset protection
Analog voltage output	0-5V output range, output impedance 100Ω
Analog current output	4-20mA output range, output impedance ≤300Ω
Response time	Optional: 1.5ms / 5ms / 10ms
Protection standard	IP67 (IEC)
Degree of contamination	Grade 2
Operating humidity	35%-85%RH; Storage humidity: 35%-85%RH
Max operating altitude	Below 2000m
Max applicable voltage	≤30V DC
Size	M3
Material	Stainless Steel
