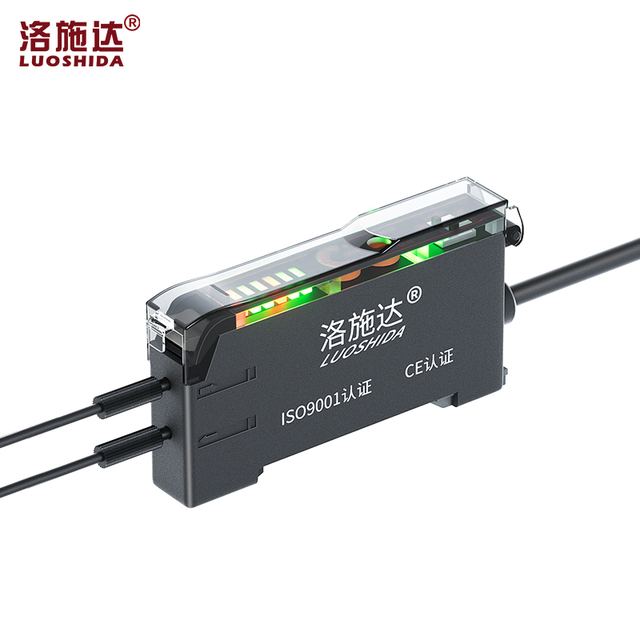

LUOSHIDA New Original FN11 Fiber Optic Sensor Amplifier with Less Than 500uS Response Time
Model FN11
Overview
LUOSHIDA New Original FN11 Fiber Optic Sensor Amplifier with Less Than 500uS Response Time, listed by Luoshida Sensor (dongguan) Co., Ltd in Dongguan, Guangdong. Certification CE RoHS, housing material PBT and output NPN/PNPN.O/N.C. are among the specifications published.
Technical specifications
| Certification | CE RoHS |
|---|---|
| Housing Material | PBT |
| Output | NPN/PNPN.O/N.C. |
| Operating Voltage | 12-24V DC |
| No Load Current | <30mA |
| Max.load Current | 150mA |
| Protection Category | IP65 |
| Pnp N.O/N.C. | FN11P |
| Size | 59.3*10*29mm |
| Voltage drop | <1.5V |
| Switching frequency | 1KHz |
| Response time | 0.5ms |
| Switching hysteresis | <10%(Sr) |
| Repeat accuracy | <5%6(Sr) |
| Short circuit protection | Yes |
| Overload current protection | 230mA |
| Standard cable length | 2M |
| Weightt | About 52g |
| Material | stainless steel |
| Cable length | Standard 1M |
| Type | through beam mode |
