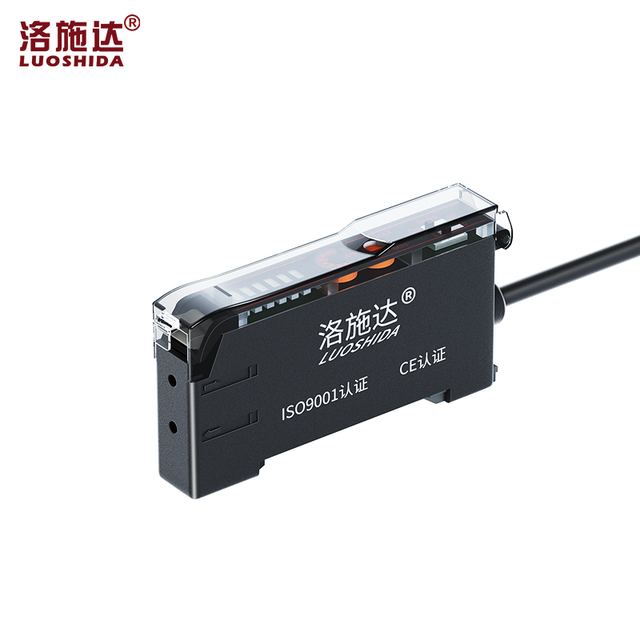

LUOSHIDA FN11 Economical Fiber Optic Sensor Amplifier with NPN/PNP Output and Fast Response Time
Model FN11
Overview
LUOSHIDA FN11 Economical Fiber Optic Sensor Amplifier with NPN/PNP Output and Fast Response Time, listed by Luoshida Sensor (dongguan) Co., Ltd in Dongguan, Guangdong. Published figures include certification CE RoHS, housing material PBT and output NPN/PNPN.O/N.C..
Technical specifications
| Certification | CE RoHS |
|---|---|
| Housing Material | PBT |
| Output | NPN/PNPN.O/N.C. |
| Operating Voltage | 12-24V DC |
| No Load Current | <30mA |
| Max.load Current | 150mA |
| Protection Category | IP65 |
| Pnp N.O/N.C. | FN11P |
| Size | 59.3*10*29mm |
| Voltage drop | <1.5V |
| Switching frequency | 1KHz |
| Response time | 0.5ms |
| Switching hysteresis | <10%(Sr) |
| Repeat accuracy | <5%6(Sr) |
| Short circuit protection | Yes |
| Overload current protection | 230mA |
| Standard cable length | 2M |
| Weightt | About 52g |
| Material | stainless steel |
| Cable length | Standard 1M |
| Type | through beam mode |
