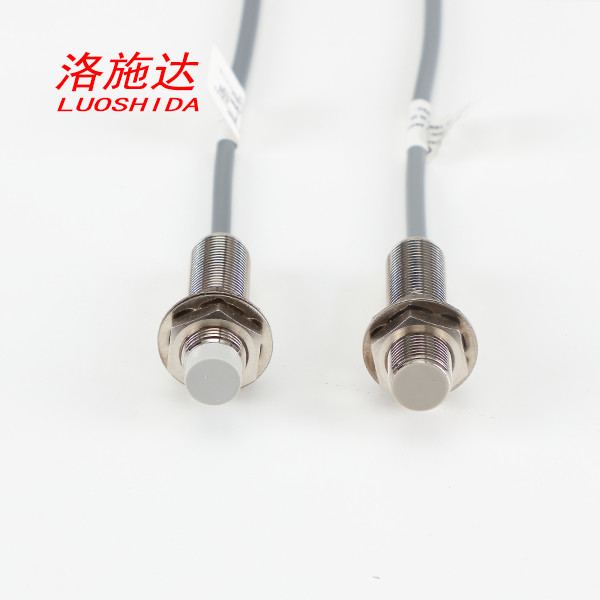

Luoshida 12V Dc Cylindrical Inductive Proximity Sensor Switch With Cable Type

Model I2B1204NO

Luoshida 12V Dc Cylindrical Inductive Proximity Sensor Switch With Cable Type

Overview

Luoshida Sensor (dongguan) Co., Ltd in Dongguan, Guangdong lists Luoshida 12V Dc Cylindrical Inductive Proximity Sensor Switch With Cable Type under Proximity Sensors. Certification CE ROHS, size M12 Diameter and distance 2mm / 4mm are among the specifications published.

Technical specifications

CertificationCE ROHS
SizeM12 Diameter
Distance2mm / 4mm
OutputNPN PNP
Housing MaterialBrass Nickel Plated
With or Without LED● with LED
Operating Voltage10-30VDC
No Load Current<10mA
Max.Load Current150mA
Leakage Current<0.01mA
Voltage Drop<1.5V
Switching Hysteresis<15%(Sr)
Repeat Accuracy<3.0%(Sr)
Protection CategoryIP67
Operating Temperature-25°C- +70°C
Temperature Drift<10%(Sr)
Short Circuit ProtectionYES
Overload Trip Point180mA
Shock/VibrationIEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active FacePBT
ConnectionD 4 3*0.15 PVC 2M
SeriesM12 Inductive proximity sensor
Mountingshielded/Non-shielded
Sensing Distance Sn(mm)2mm/4mm
Output functionNPN/PNP NO/NC
MaterialStainless Steel
