Overview

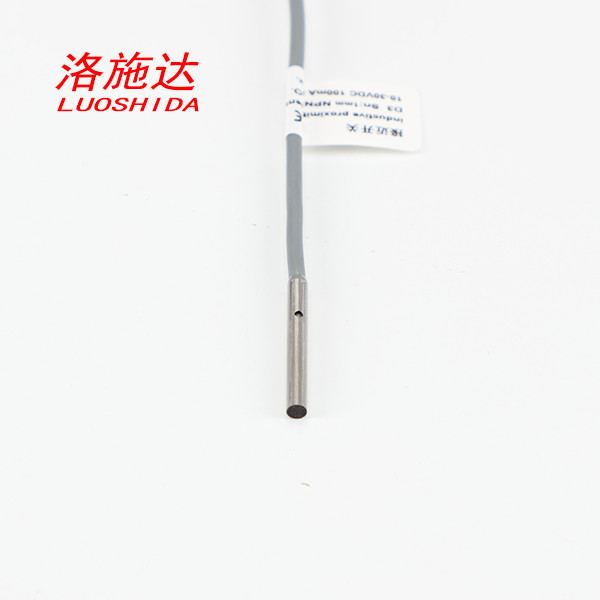

High Precision Miniature Proximity Sensor DC 3mm Diameter Flush For Position Detector supplied by Luoshida Sensor (dongguan) Co., Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE ROHS; Voltage 10-30V DC; Sensing Distance 0.6/0.8/1.0mm; Housing Material Stainless Steel. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	CE ROHS
Voltage	10-30V DC
Sensing Distance	0.6/0.8/1.0mm
Housing Material	Stainless Steel
Switching Frequency	2KHz
Size	D3 * 25mm
Mounting	shielded
Sensing Distance Sn(mm)	0.6mm / 0.8mm / 1.0mm
With or Without LED	● with LED
Operating Voltage	10-30VDC
No Load Current	<10mA
Max.Load Current	100mA
Leakage Current	<0.01mA
Voltage Drop	<1.5V
Response Time	0.1ms/0.1ms/0.3ms
Switching Hysteresis	<15%(Sr)
Repeat Accuracy	<3.0%(Sr) /<3.0%(Sr) /<5.0%(Sr)
Protection Category	IP67
Operating Temperature	-25°C- +70°C
Temperature Drift	<10%(Sr)
Shock/Vibration	IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active Face	PA66
Connection	D2.5 3*0.14 PVC 2M
Output function	NPN/PNP NO/NC
Output	NPN PNP NO NC
Material	Stainless Steel
