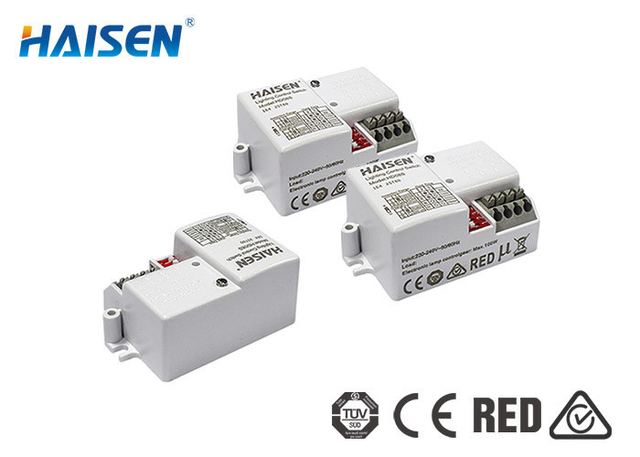

High Frequency Motion Sensor ON OFF Switch 220V 240V AC Operated
Model HD08S
Overview
High Frequency Motion Sensor ON OFF Switch 220V 240V AC Operated supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE TUV RED; Stand-by Power ≤0.5W; Power of Load Max.100W; Transmitting power <0.3mW Max.. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE TUV RED |
|---|---|
| Stand-by Power | ≤0.5W |
| Power of Load | Max.100W |
| Transmitting power | <0.3mW Max. |
| Hold time | 5s/60s/3min/10min |
| Daylight Sensor | 30Lux/Disable |
| Mounting Height | Suggested 6M Max, ceiling mounting |
| Environmental protection | Compliant to RoHS |
| Certificates | Compliant to CE TUV RED |
| IP Rating | IP20 |
| Installation | Installed inside lamps |
| Mounting size | 60.6*35.5*25.1mm |
| Lifespan | 50000h @ Ta Full load |
| Operating Voltage | 220~240 VAC 50/60Hz |
| Microwave Frequency | 5.8GHz±75MHz |
| Interfaces | 4-pole Pluggable Clamp Terminal(L,N,N,L’) For 0.75-1.5mm2 Cable |
| Detection Range | Max.ø14m(ceiling Mounted);Max.10m(wall Mounted) |
| Press Terminal, wire diameter | 0.75-1.5mm2 |
