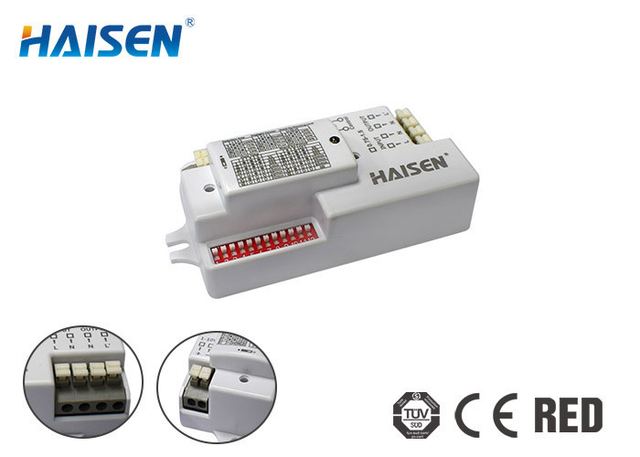

HD01V IP20 External Microwave Motion Sensor For Ceiling Fixture
Model HD01V
Overview
HD01V IP20 External Microwave Motion Sensor For Ceiling Fixture supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE RoHS TUV RED; Stand-by period 0s/10s/1min/10min/30min/1h/∞; Mounting Height Max.6m(ceiling mounted) Max.3m(wall mounted); Detection range Max.ø14m(ceiling mounted) Max.10m(wall mounted). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE RoHS TUV RED |
|---|---|
| Stand-by period | 0s/10s/1min/10min/30min/1h/∞ |
| Mounting Height | Max.6m(ceiling mounted) Max.3m(wall mounted) |
| Detection range | Max.ø14m(ceiling mounted) Max.10m(wall mounted) |
| Hold time | 5s/30s/1min/5min/10min/20min/30min |
| IP rating | IP20 |
| Life | 50000h |
| Microwave Frequency | 5.8GHz±75MHz |
| Stand-by Power | ≤ 1W |
