Overview

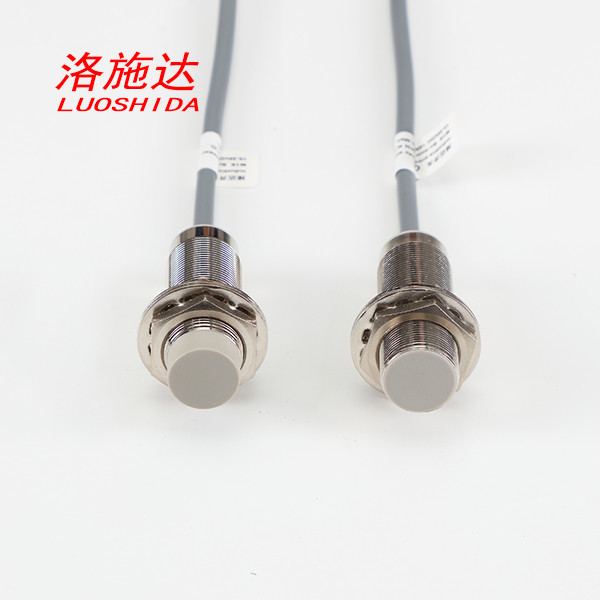

DC 3 Wire Metal Cylindrical M18 Inductive Proximity Sensor For Metal Detection supplied by Luoshida Sensor (dongguan) Co., Ltd. Listed under Proximity Sensors. Key published specifications: Certification CE ROHS; Theory Inductance Sensor; Application Metal Detection Or Distance Detection; Output NPN PNP NO NC NO+NC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	CE ROHS
Theory	Inductance Sensor
Application	Metal Detection Or Distance Detection
Output	NPN PNP NO NC NO+NC
Size	M18*55mm
Material	Brass With Nickel
Housing Material	Brass nickel plated
With or Without LED	● with LED
Operating Voltage	10-30VDC
No Load Current	<10mA
Max.Load Current	150mA
Leakage Current	<0.01mA
Voltage Drop	<1.5V
Switching Hysteresis	<15%(Sr)
Repeat Accuracy	<3.0%(Sr)
Protection Category	IP67
Operating Temperature	-25°C- +70°C
Temperature Drift	<10%(Sr)
Short Circuit Protection	YES
Overload Trip Point	180mA
Shock/Vibration	IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active Face	PBT
Connection	D5 3*0.34 PVC 2M
Series	M18 Normal Inductive proximity sensor
Mounting	shielded/Non-shielded
Sensing Distance Sn(mm)	5mm/8mm
Output function	NPN/PNP NO/NC
