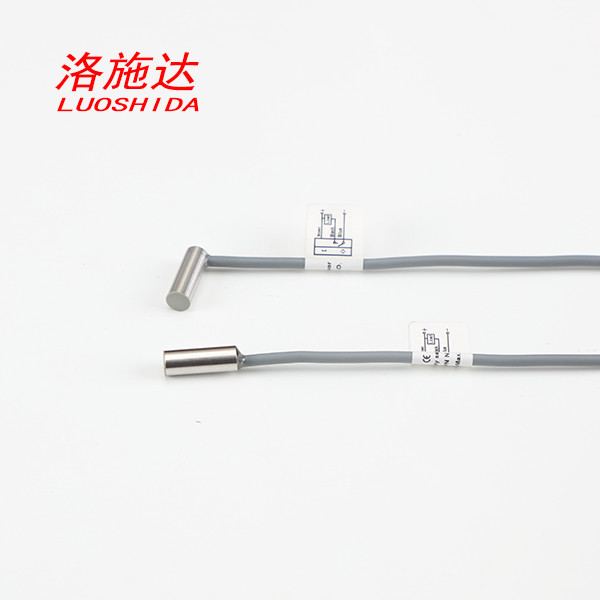

Dc 3 Wire 10-30v Elbow Mini Shorter Inductive Proximity Sensor Swich For Speed Sensor

Dc 3 Wire 10-30v Elbow Mini Shorter Inductive Proximity Sensor Swich For Speed Sensor

Overview

Dc 3 Wire 10-30v Elbow Mini Shorter Inductive Proximity Sensor Swich For Speed Sensor, listed under Proximity Sensors by Luoshida Sensor (dongguan) Co., Ltd in Dongguan, Guangdong. The listing gives certification CE ROHS, size 6.5*18mm Y Type and housing material Stainless Steel.

Technical specifications

CertificationCE ROHS
Size6.5*18mm Y Type
Housing MaterialStainless Steel
Sensing Distance1mm Or 2mm
OutputNPN PNP NO NC
Cable LengthStandard 2M
Mountingshielded
Sensing Distance Sn(mm)1mm / 2mm
With or Without LED● with LED
Operating Voltage10-30VDC
No Load Current<10mA
Max.Load Current150mA
Leakage Current<0.01mA
Voltage Drop<1.5V
Switching Frequency2KHz / 1KHz
Response Time0.1ms/0.1ms
Switching Hysteresis<15%(Sr)
Repeat Accuracy<3.0%(Sr)
Protection CategoryIP67
Operating Temperature-25°C- +70°C
Temperature Drift<10%(Sr)
Short Circuit ProtectionYES
Overload Trip Point180mA
Shock/VibrationIEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active FacePBT
ConnectionD3 3*0.15 PVC 2M
SeriesMini-Shorter Inductive proximity sensor
