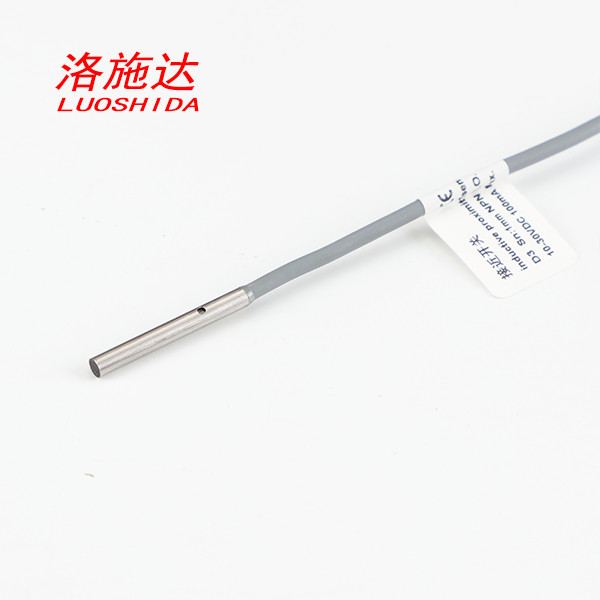

DC 10-30V 3 Wire 3mm Small Proximity Sensor For Metal Detection

Model I1S030.6NO

DC 10-30V 3 Wire 3mm Small Proximity Sensor For Metal Detection

Overview

Luoshida Sensor (dongguan) Co., Ltd in Dongguan, Guangdong lists DC 10-30V 3 Wire 3mm Small Proximity Sensor For Metal Detection under Proximity Sensors. Published figures include certification CE ROHS, voltage 10-30V DC and sensing distance 0.6/0.8/1.0mm.

Technical specifications

CertificationCE ROHS
Voltage10-30V DC
Sensing Distance0.6/0.8/1.0mm
OutputNPN PNP NO NC
Housing MaterialStainless Steel
Diameter3mm
SizeD3 * 25mm
Mountingshielded
Sensing Distance Sn(mm)0.6mm / 0.8mm / 1.0mm
With or Without LED● with LED
Operating Voltage10-30VDC
No Load Current<10mA
Max.Load Current100mA
Leakage Current<0.01mA
Voltage Drop<1.5V
Switching Frequency2KHz / 2KHz / 1KHz
Response Time0.1ms/0.1ms/0.3ms
Switching Hysteresis<15%(Sr)
Repeat Accuracy<3.0%(Sr) /<3.0%(Sr) /<5.0%(Sr)
Protection CategoryIP67
Operating Temperature-25°C- +70°C
Temperature Drift<10%(Sr)
Shock/VibrationIEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2
Material Active FacePA66
ConnectionD2.5 3*0.14 PVC 2M
Output functionNPN/PNP NO/NC
MaterialStainless Steel
