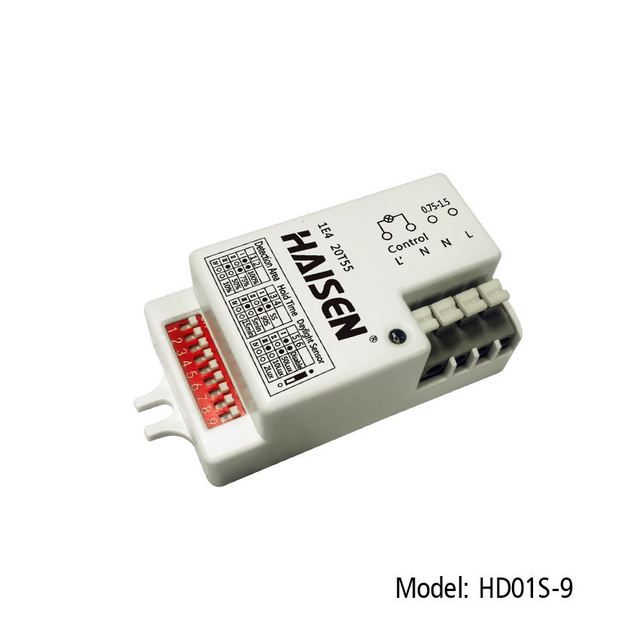

Automatic Light Motion Sensor ON OFF Switch 9 Dip Switch Setting supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Certification TUV CE RED RoHS; Input voltage 220~240VAC 50/60Hz; Switching capacity Max.400W(Control gear); Max.800W(Incandescent lamp); Stand-by power <0.5W. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Certification	TUV CE RED RoHS
Input voltage	220~240VAC 50/60Hz
Switching capacity	Max.400W(Control gear); Max.800W(Incandescent lamp)
Stand-by power	<0.5W
Hold time	5s/30s/1min/5min/10min/20min/30min
Daylight threshold	2Lux /10Lux /20Lux/30Lux/50Lux/80Lux/Disable
Microwave frequency	5.8GHz±75MHz
Microwave power	<0.3mW
Mounting height	Max.6m(Ceiling mounted)
Detection range	Max.ø14m(Ceiling mounted)
Motion detection	0.5~1.5m/s
Operating temperature	Ta: -20°C+55°C Tc: 80°C
IP rating	IP20
Certificate	TUV CE RED RoHS
Max. Load	400W (LED Light)
Detection Area	Hold Time: Daylight Threshold:
Application	HD01S-9.pdf
