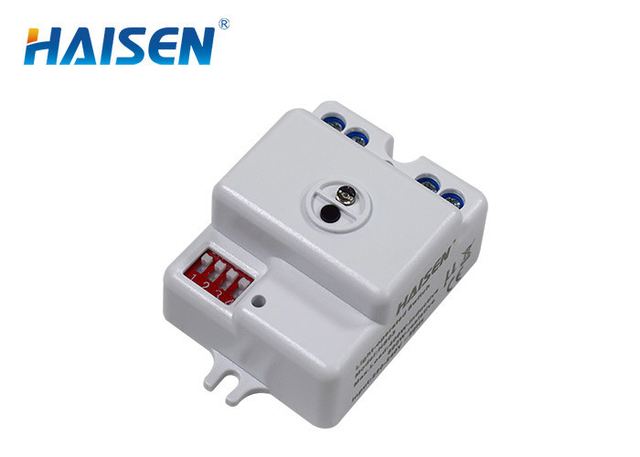

220VAC 240VAC Daylight Harvesting Sensor Built In Photocell Unit
Model HS03
Overview
220VAC 240VAC Daylight Harvesting Sensor Built In Photocell Unit, listed under Proximity Sensors by Shenzhen HAISEN Technology Co.,Ltd in Shenzhen, Guangdong. Operating voltage 220-240VAC, switching capacity 230V, Max 400W @ Control Gear, 10A and stand-by power ≤0.5W are among the specifications published.
Technical specifications
| Operating voltage | 220-240VAC |
|---|---|
| Switching capacity | 230V, Max 400W @ Control Gear, 10A |
| Stand-by power | ≤0.5W |
| Interfaces | 4-pole pluggable clamp terminal (L,N,N,L’) for 1.5mm2 cable |
| Mounting height | 2.5m-6m |
| Operating temperature | -25°C~+60°C |
| IP rating | IP20 |
