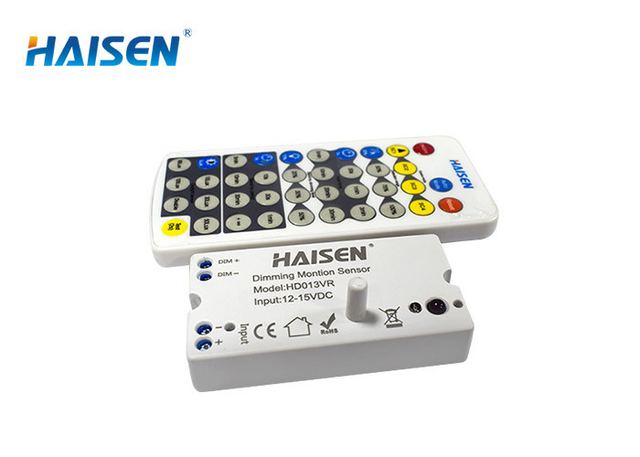

12VDC Input PWM 0-10V Dimmable Rod Antenna Daylight Sensor IP 20

Model HD013VR

12VDC Input PWM 0-10V Dimmable Rod Antenna Daylight Sensor IP 20

Overview

12VDC Input PWM 0-10V Dimmable Rod Antenna Daylight Sensor IP 20, listed by Shenzhen HAISEN Technology Co.,Ltd in Shenzhen, Guangdong. Certification CE RoHS, hold time 5s/30s/1min/3min/5min/10min/20min/30min and daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable are among the specifications published.

Technical specifications

CertificationCE RoHS
Hold time5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
Stand-by period0S/10s/30s/1min/5min/10min/30min/+∞
Mounting HeightMax.2.5-4m/8.2-13.12ft
Detection range(Radius) 2-4m/6.56-13.12ft
Operating temperature-25°C~+60°C
OutputPWM/0-10V
Operating current≥30mA
InstallationInstalled inside lamps
IP ratingIP 20
Life time50000h
Microwave Frequency5.8GHz±75MHz
