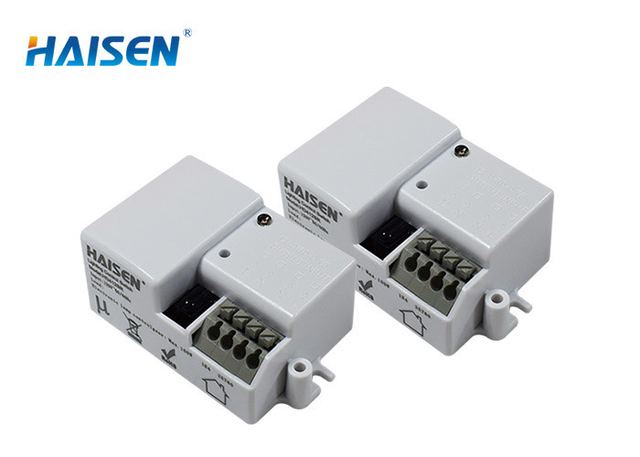

120VAC Operated ON OFF Switch Sensor For Ceiling Triproof Light
Model HD412SR
Overview
120VAC Operated ON OFF Switch Sensor For Ceiling Triproof Light supplied by Shenzhen HAISEN Technology Co.,Ltd. Listed under Proximity Sensors. Key published specifications: Operating voltage 120VAC 50/60Hz; Switching capacity Max.100W; Stand-by power <0.5W; Hold time 5s/60s/5min/10min. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Operating voltage | 120VAC 50/60Hz |
|---|---|
| Switching capacity | Max.100W |
| Stand-by power | <0.5W |
| Hold time | 5s/60s/5min/10min |
| Daylight threshold | 2Lux/10Lux/50Lux/Disable |
| Microwave frequency | 5.8GHz±75MHz |
| Microwave power | <1mW |
| Interfaces | 4-pole pluggable clamp terminal (L,N,N,L’) for 0.75-1.5mm2 cable |
| Mounting height | Max.6m(ceiling mounted);Max.3m(wall mounted) |
| Detection range | Max.ø12m(ceiling mounted);Max.10m(wall mounted) |
| Operating temperature | -25°C~+60°C |
| Installation Size | 60.6*35.5*25.1mm |
| Cover Color | White |
| IP rating | IP20 |
| Life time | 50,000 hours |
