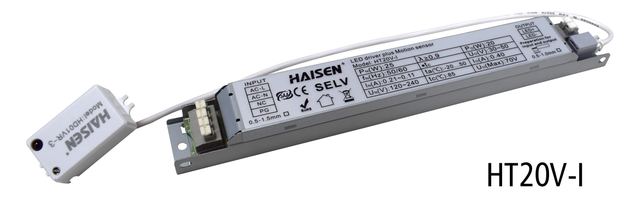

0.3mW Microwave Dimmable Motion Sensor Linear Detachable design

Model HT20V-I

0.3mW Microwave Dimmable Motion Sensor Linear Detachable design

Overview

0.3mW Microwave Dimmable Motion Sensor Linear Detachable design, listed by Shenzhen HAISEN Technology Co.,Ltd in Shenzhen, Guangdong. Published figures include certification RoHSCE SAA, input voltage 120-240VAC,50Hz/60Hz and input current 0.21-0.11A Max.

Technical specifications

CertificationRoHSCE SAA
Input voltage120-240VAC,50Hz/60Hz
Input current0.21-0.11A Max
Input power25W Max
Output LED current0.40A±5%
Output LED voltage30V-50V DC
Output LED power12-20W
Stand-by power<1W
Empty load voltage≤70V Max
Efficiency≥80% (Max.)
Microwave frequency5.8GHz±75MHz
Microwave power<0.3mW
Hold time5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period0s/10s/30s/1min/5min/10min/30min/+∞
Mounting height3-6m (ceiling mounted)
Deteation rangeRadius, 4-7m (ceiling mounted)
Motion detection0.5–1.5m/s
Operating temperatureTa: -20°C~55°C Tc: 85°C
Abnormal protectionSCP:Auto recovery,OVP,OCP,OTP
EMC standardEN55015
Safety standardEN61347-1 EN61347-2-13 EN60598-1
IP ratingIP 20
ApplicationFor Tri-proof Light
Technical dataModel number
Installation Method4 styles of installation
