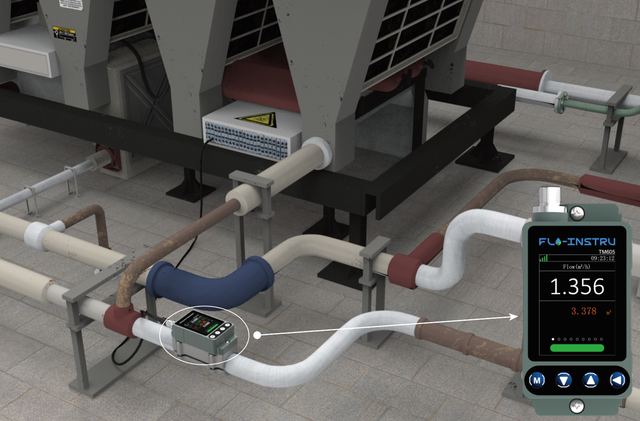

TM605 Compact Ultrasonic Flow Meter with OLED 320*240 Display, RS485 Communication, and DN6-DN100 Pipe Range

Model TM605

TM605 Compact Ultrasonic Flow Meter with OLED 320*240 Display, RS485 Communication, and DN6-DN100 Pipe Range

Overview

TM605 Compact Ultrasonic Flow Meter with OLED 320*240 Display, RS485 Communication, and DN6-DN100 Pipe Range supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Flow Range 0.1m/s ~ ±5m/s(0.328ft/s ~ ±16ft/s); Power Supply 24V DC; Pipe Diameter Range DN6～DN100; Velocity Rate 0.328 ft/s～±16ft/s(0.1m/s～±5m/s). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Flow Range0.1m/s ~ ±5m/s(0.328ft/s ~ ±16ft/s)
Power Supply24V DC
Pipe Diameter RangeDN6～DN100
Velocity Rate0.328 ft/s～±16ft/s(0.1m/s～±5m/s)
Pipe SizeDN6 DN8 DN10 DN15 DN20 DN25 DN32
Pipe MaterialPVC,stainless steel,carbon steel,copper.…
CommunicationSupport MODBUS protocol,RS485
Analog Output4-20mA,Maximum 750Ω
Key PanelFour touch buttons
TemperatureAmbient:32F～+122F(0℃～+50℃)
Ambient HumidityRH 0～95%,No condensation
Housing MaterialAluminum alloy,CNC machined processing
Protection RateIP54
Cable Length6.6ft (2m)standard
CertificationISO:9001, CE
Liquid32F～+122F(0℃～+50℃)
