Overview

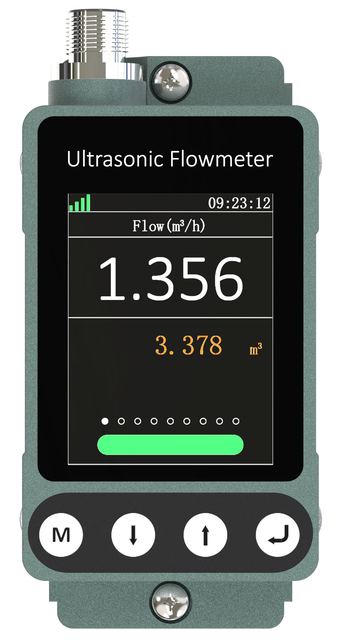

TM605 Compact Ultrasonic Flow Meter for OEM Applications supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Flow Range 0.1m/s ~ ±5m/s(0.328ft/s ~ ±16ft/s); Accuracy Valued ±2%; Pipe Diameter Range(Optional) DN6～DN100; Pipe Material(Optional) Carbon Steel, Stainless Steel, PVC. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Flow Range	0.1m/s ~ ±5m/s(0.328ft/s ~ ±16ft/s)
Accuracy	Valued ±2%
Pipe Diameter Range(Optional)	DN6～DN100
Pipe Material(Optional)	Carbon Steel, Stainless Steel, PVC
Power Supply	24V DC
Keyboard	4 Touch Keys
Velocity Rate	0.328 ft/s～±16ft/s(0.1m/s～±5m/s)
Pipe Size	DN6 DN8 DN10 DN15 DN20 DN25 DN32
Pipe Material	PVC,stainless steel,carbon steel,copper.…
Communication	Support MODBUS protocol,RS485
Analog Output	4-20mA,Maximum 750Ω
Key Panel	Four touch buttons
Temperature	Ambient:32F～+122F(0℃～+50℃)
Ambient Humidity	RH 0～95%,No condensation
Housing Material	Aluminum alloy,CNC machined processing
Protection Rate	IP54
Cable Length	6.6ft (2m)standard
Certification	ISO:9001, CE
Liquid	32F～+122F(0℃～+50℃)
