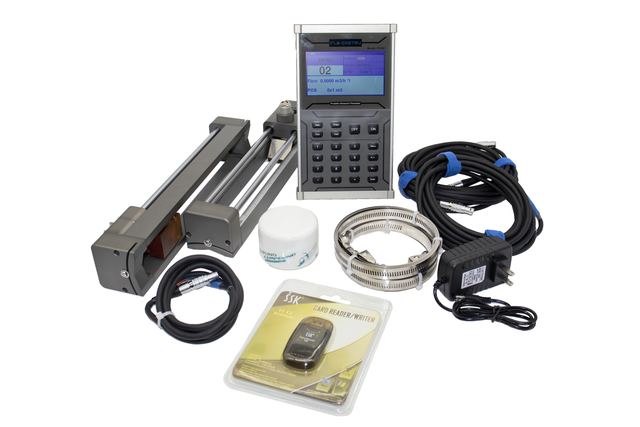

PH301 Portable Ultrasonic Flow Meter for Field Flow Verification
Model PH301
Overview
Flo-Instruments Co., Ltd in Shenzhen, Guangdong lists PH301 Portable Ultrasonic Flow Meter for Field Flow Verification under Flow Meters. The listing gives velocity range ±0.03 ~ ±40 Ft/s (±0.01~ ±12 M/s), accuracy ±0.5% Of Measured Value and pipe size 1''~ 200'' (25mm~5000mm).
Technical specifications
| Velocity Range | ±0.03 ~ ±40 Ft/s (±0.01~ ±12 M/s) |
|---|---|
| Accuracy | ±0.5% Of Measured Value |
| Pipe Size | 1''~ 200'' (25mm~5000mm) |
| Outputs | Analog Output: 4~20mA, Max 750 Ω |
| SD Card | Storage: 2GB,Max: 512 Files,Interval: 1~86400s |
| Keypad | 22 Touch Keys |
| Display | 4.3 Inch TFT Screen, Backlight LCD |
| Temperature | Transmitter: 32℉~140℉ (0℃~60℃) Transducer: -40℉~248℉ (-40℃~120℃) |
| Humidity | 0 To 99% RH,non-condensing |
| Transmitter | NEMA13 (IP54) |
| Transducer | Encapsulated Design, IP68;Standard Cable Length: 5m |
| Weight | Transmitter: approximately 1.0kg |
| Certification | CE/IS09001 |
| Analog Output | 4~20mA, Max 750 Ω |
| Storage | 2GB,Max: 512 Files,Interval: 1~86400s |
| Max | 512 files; |
| Standard cable length | 5m |
