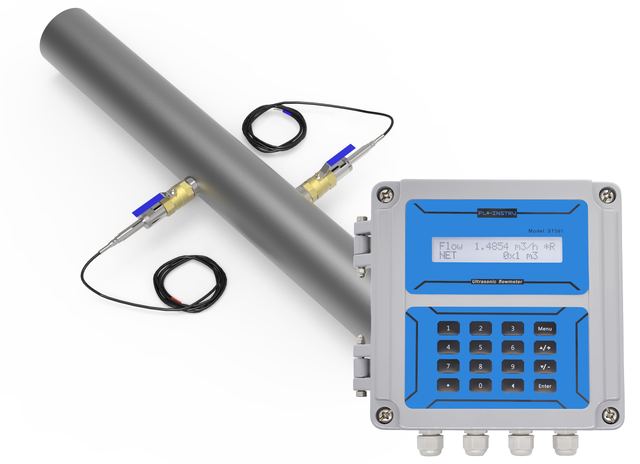

ST501 Insertion Flow Meter with Transit-Time Tech

Model ST501

ST501 Insertion Flow Meter with Transit-Time Tech

Overview

ST501 Insertion Flow Meter with Transit-Time Tech, listed by Flo-Instruments Co., Ltd in Shenzhen, Guangdong. The listing gives pipe size DN25-DN1200, velocity range 0 ~±16ft/s (0~±5m/s) and power supply 24V DC.

Technical specifications

Pipe SizeDN25-DN1200
Velocity Range0 ~±16ft/s (0~±5m/s)
Power Supply24V DC
Communication InterfaceRS485
Keypad16(4×4) key with tactile action
Display20×2 lattice alphanumeric, back lit LCD
Temperature RangeTransmitter: 32℉~140℉ (0℃~60℃) Transducer: -40℉~176℉ (-40℃~80℃)
HumidityUp to 99% RH, non-condensing
TransmitterAluminum alloy, IP65
TransducerEncapsulated design, IP68
Transducer CableStandard cable length: 33ft (10m)
WeightTransmitter: approximately 0.7kg; Transducer: approximately 0.4kg
CertificationCE; ISO9001
OCT Pulse output0~5000Hz
Analog output4~20mA, max load 750Ω
Standard cable length33ft (10m)
