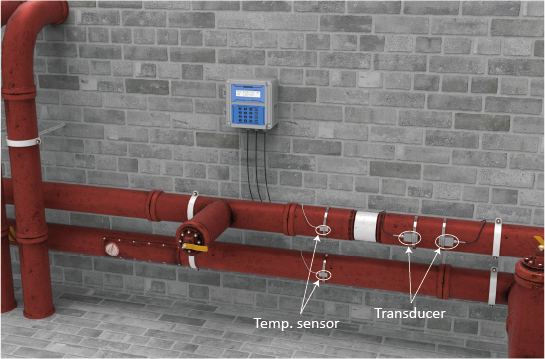

ST502 Ultrasonic Energy Meter for District Cooling Systems

Model ST501

ST502 Ultrasonic Energy Meter for District Cooling Systems

Overview

ST502 Ultrasonic Energy Meter for District Cooling Systems, listed by Flo-Instruments Co., Ltd in Shenzhen, Guangdong. The listing gives pipe size DN25-DN1200, velocity range 0.03 ~±16ft/s (0.01~±5m/s) and power supply 24V DC.

Technical specifications

Pipe SizeDN25-DN1200
Velocity Range0.03 ~±16ft/s (0.01~±5m/s)
Power Supply24V DC
TransducersOperating Temperature: 32℉ ~ +140℉ (0℃~+60℃)
Display20*2, Alphanumeric, Backlit LCD
Transmitter EnclosureIP65, Die-cast Aluminum Machined Enclosure, CNC Machined
CommunicationRS485
Keypad16 Light Tactile Keys
Repeatability0.3% of measured value
Communication & OutputsCommunication: ModBus RS485
Time Unit/Day/Hour, /Min, /Sec.
TemperatureTransmitter: 32℉~140℉ (0℃~60℃)
HumidityUp to 99% RH, non-condensing
TransmitterAluminum alloy, IP65.
TransducerEncapsulated design, IP68.
WeightTransmitter: approximately 0.7kg; Transducer: approximately 0.4kg
CertificationCE; ISO9001
Standard cable length33ft (10m).
