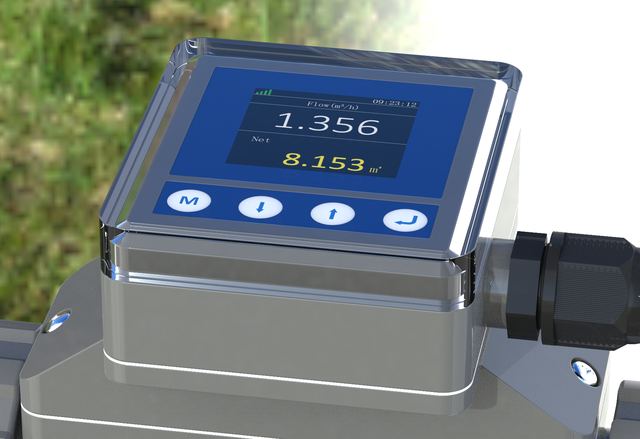

FL101 In-Line Ultrasonic Flow Meter for Clean Water Applications

Model FL101

FL101 In-Line Ultrasonic Flow Meter for Clean Water Applications

Overview

FL101 In-Line Ultrasonic Flow Meter for Clean Water Applications supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Flow Range 0.1m/s ~ 10m/s; Pipe Diameter Range(Optional) OD20,OD25,OD32,OD40; Pipe Section Material(Optional) UPVC; Communication Interface RS485, Support Modbus RTU Protocol. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Flow Range0.1m/s ~ 10m/s
Pipe Diameter Range(Optional)OD20,OD25,OD32,OD40
Pipe Section Material(Optional)UPVC
Communication InterfaceRS485, Support Modbus RTU Protocol
Power Supply24V DC
Keyboard4 Touch Keys
Accuracy±1.0% (0.3m/s~5.0m/s)
Flow Velocity0.1m/s~10.0m/s
Linearity±1.0% (0.3m/s-5.0m/s)
Response Time500ms
Menu LanguageSimplified Chinese/Traditional Chinese/English
Cumulative Data10 years 64 months 64 days
Operation KeyFour touch buttons
Calendar BatteryCR1220
Analog Output4-20mA, maximum load 600Ω
Protection LevelIP66
Pipe Section MaterialUPVC
Media Temperature0°C-60°
Working Temperature-10°C-50°C
Ambient HumidityRelative humidity 0%-95%, no condensation
Applicable Viscosity<300CST (mm²/s)
CertificationISO:9001, CE
The medium users have measuredDilute sulfuric acid
