Overview

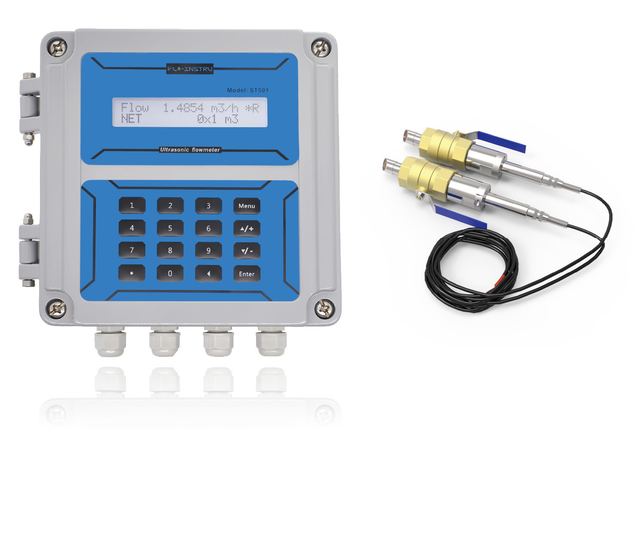

ST501 Insertion Ultrasonic Flow Meter with DN25-DN1200 Range IP65 Enclosure and 4-20mA Output supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Pipe Size DN25-DN1200; Flow Range 0 ~±16ft/s (0~±5 M/s); Power Supply 24V DC; Velocity Range 0 ~ ±16ft/s (0 ~ ±5m/s). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Pipe Size	DN25-DN1200
Flow Range	0 ~±16ft/s (0~±5 M/s)
Power Supply	24V DC
Velocity Range	0 ~ ±16ft/s (0 ~ ±5m/s)
Communication Interface	RS485
Keypad	16(4×4) key with tactile action
Display	20×2 lattice alphanumeric, back lit LCD
Temperature Range	Transmitter: 32℉~140℉ (0℃~60℃) Transducer: -40℉~176℉ (-40℃~80℃)
Humidity	Up to 99% RH, non-condensing
Transmitter	Aluminum alloy, IP65
Transducer	Encapsulated design, IP68
Transducer Cable	Standard cable length: 33ft (10m)
Weight	Transmitter: approximately 0.7kg; Transducer: approximately 0.4kg
Certification	CE; ISO9001
OCT Pulse output	0~5000Hz
Analog output	4~20mA, max load 750Ω
Standard cable length	33ft (10m)
