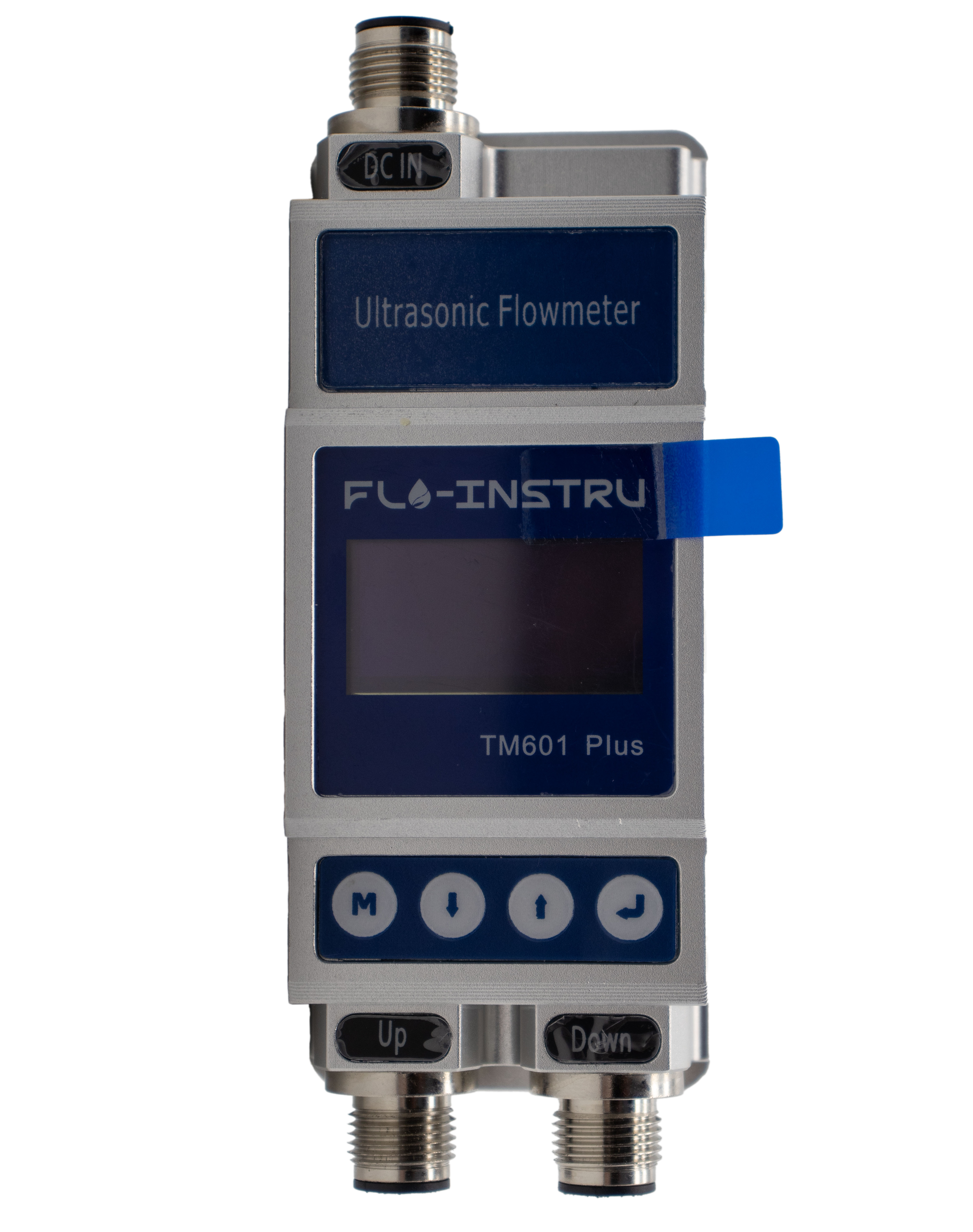

TM601 Plus Ultrasonic Flow Meter with OLED Display, RS485 Communication, and No Pipe Modification
Model TM601 Plus
Overview
TM601 Plus Ultrasonic Flow Meter with OLED Display, RS485 Communication, and No Pipe Modification, listed under Flow Meters by Flo-Instruments Co., Ltd in Shenzhen, Guangdong. Keyboard 4 Touch Keys, pipe material Carbon Steel, Stainless Steel, PVC and flow range ±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s) are among the specifications published.
Technical specifications
| Keyboard | 4 Touch Keys |
|---|---|
| Pipe Material | Carbon Steel, Stainless Steel, PVC |
| Flow Range | ±0.1m/s ~ ±5m/s(±0.328ft/s ~ ±16ft/s) |
| Power Supply | 24V DC |
| Pipe Diameter Range | OD110～OD220 |
| Velocity Rate | 0.328 ft/s～±16ft/s (0.1m/s～±5m/s) |
| Pipe Size | DN100, DN125, DN160, DN200 |
| Communication | Support MODBUS protocol, RS485 |
| Analog Output | 4-20mA, Maximum 750Ω |
| Key Panel | Four touch buttons |
| Temperature Range | Ambient: 14F～+122F (-10℃～+50℃) Liquid: 14F～+122F (-10℃～+50℃) |
| Ambient Humidity | RH 0～95%, No condensation |
| Housing Material | Aluminum alloy, CNC machined processing |
| Protection Rate | IP54 |
| Cable Length | 6.6ft (2m) standard |
| Certification | ISO:9001, CE |
| hour, /min (factory default | cubic meters per hour) |
| Liquid | 14F～+122F (-10℃～+50℃) |
