Overview

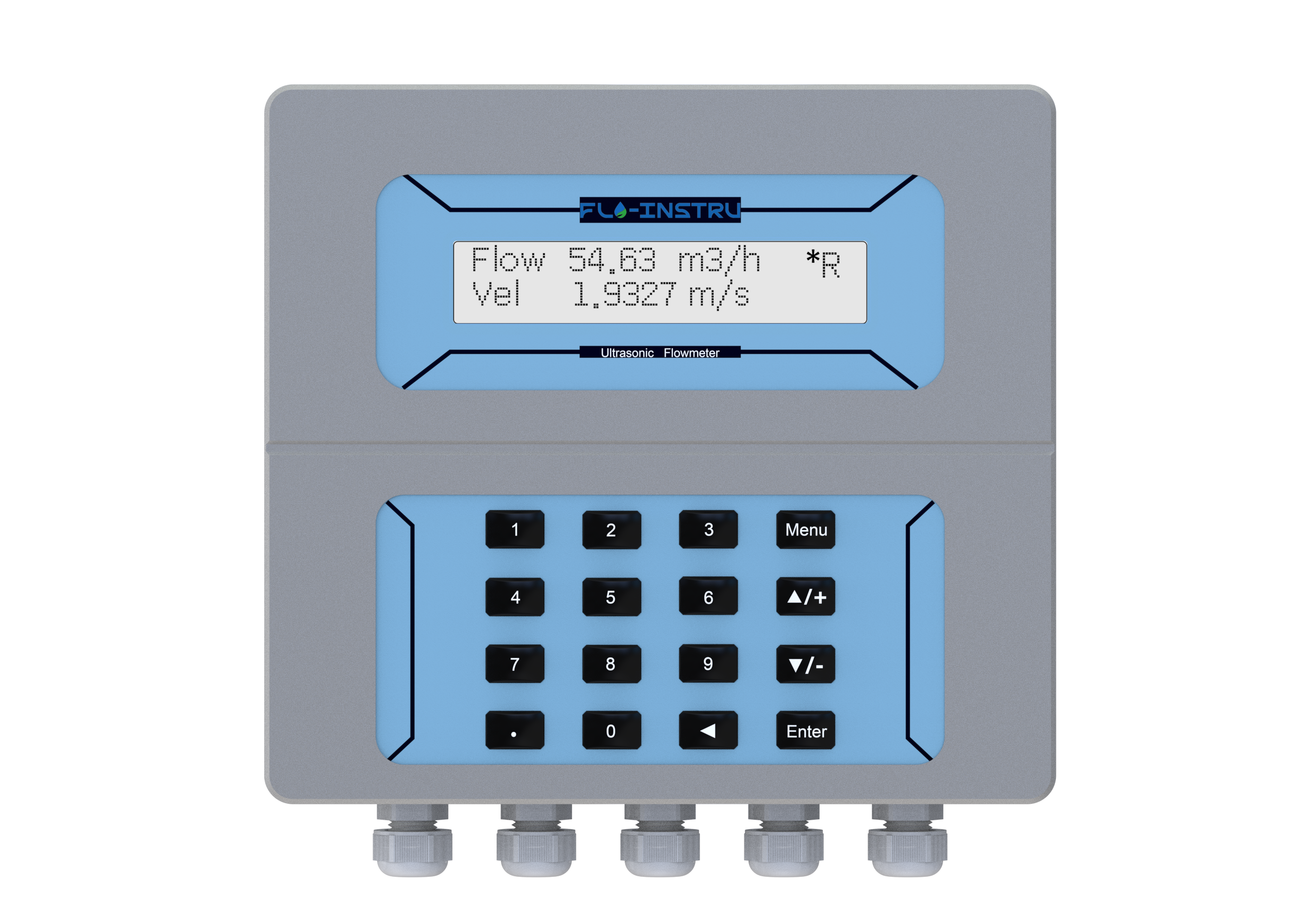

ST505 Ultrasonic Flow Meter with Transit-Time Tech supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Transducer Cable Standard Cable Length: 33ft (10m); Pipe Size 1”~48”(25mm~1200mm); Velocity Range 0 ~ ±16ft/s (0 ~ ±5m/s); Accuracy ±1% of measured value. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Transducer Cable	Standard Cable Length: 33ft (10m)
Pipe Size	1”~48”(25mm~1200mm)
Velocity Range	0 ~ ±16ft/s (0 ~ ±5m/s)
Accuracy	±1% of measured value
Repeatability	0.3% of measured value
Power Supply	24V DC
Keypad	16 touch buttons
Display	(20×2), alphanumeric, backlit LCD
Communication	RS485
Transmitter	Die-cast aluminum, IP65, CNC machined
Temperature	Transmitter: -40℉~140℉ (-40℃~60℃) Transducer: 32℉~140℉ (0℃~60℃) Standard
Humidity	Up to 99% RH, non-condensing
Certification	CE; ISO9001
Standard Cable Length	33ft (10m)
Analog output	4~20mA, max load 750Ω
Pulse output	0~9999Hz, OCT (min. and max. frequency adjustable)
Standard/maximum cable length	30ft/1000ft (9m/305m)
Liquid Temp.	32℉~140℉ (0℃~60℃) (Standard)
