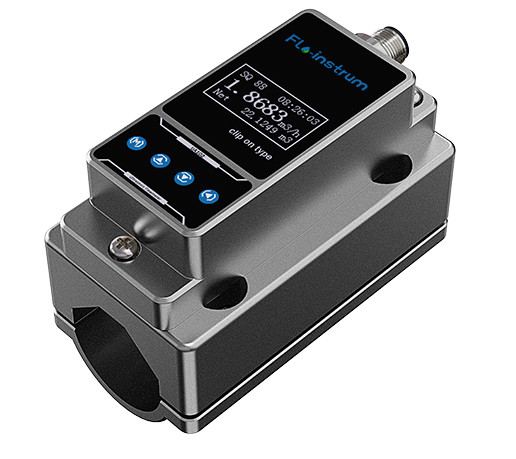

TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display

Model TM601

TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display

Overview

TM601 Clamp-on Ultrasonic Flow Meter with RS485 Communication IP54 Protection and OLED Display supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Velocity Range ±0.1m/s ~ ±5m/s; Power Supply 10-36V DC; Protection Rate IP54; Cable Length 2m. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Velocity Range±0.1m/s ~ ±5m/s
Power Supply10-36V DC
Protection RateIP54
Cable Length2m
Velocity Rate0.328 ft/s～±16ft/s (0.1m/s～±5m/s)
CommunicationMODBUS protocol, RS485
Analog Output4-20mA, Maximum 750Ω
Key PanelFour touch buttons
Temperature RangeAmbient: 14F～+122F (-10℃～+50℃) Liquid: 14F～+122F (-10℃～+50℃)
Ambient HumidityRH 0～95%, No condensation
Housing MaterialAluminum alloy, CNC machined processing
CertificationISO:9001, CE
hour, /min (factory defaultcubic meters per hour)
Liquid14F～+122F (-10℃～+50℃)
