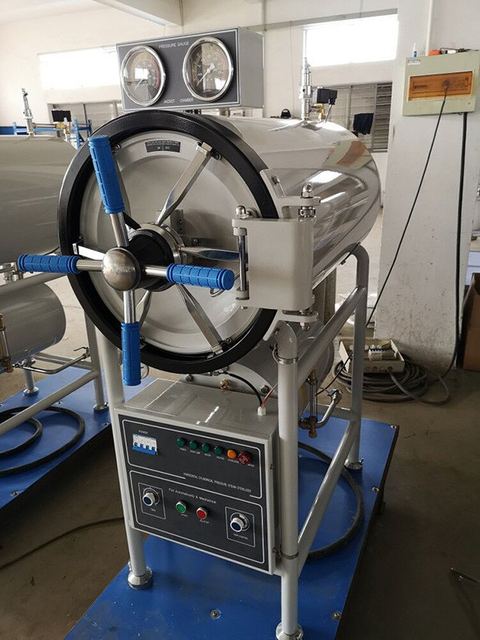

CE Certified Horizontal Steam Sterilizer Medical Laboratory Display
Model STH-HK200
Overview
CE Certified Horizontal Steam Sterilizer Medical Laboratory Display supplied by Stertek（Nanjing）Medical Equipment Co.,ltd. Key published specifications: Certification CE, ISO13485,ISO9001; Volume 200L; Door Structure Hand Wheel; Display Knob Control. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | CE, ISO13485,ISO9001 |
|---|---|
| Volume | 200L |
| Door Structure | Hand Wheel |
| Display | Knob Control |
| Power | 9kw |
| Chamber Material | Stainless Steel 304 |
| Chamber Size | ø515*1000mm |
| Net Weight | 318kg |
| Working Press. | 0.25Mpa |
| Voltage | 380v, 50hz, Three Phase |
| Model | STH-HK200 |
| Sterilizing Chamber Volume | Ø515*1000mm |
| Design pressure | 0.3Mpa |
| Max. Working pressure | 0.25Mpa |
| Time for sterilization | 0~99min |
| Time for drying | 0~99min |
| Power voltage | AC 220/380V, three phase |
| Gross Weight/Net Weight | 378 kg /318 kg |
| Capacity | 150L, 250L, 360L, 450L, 600L, 800L |
| Door Type | Lifting Sliding-Door |
| Number of doors | Single door |
