Overview

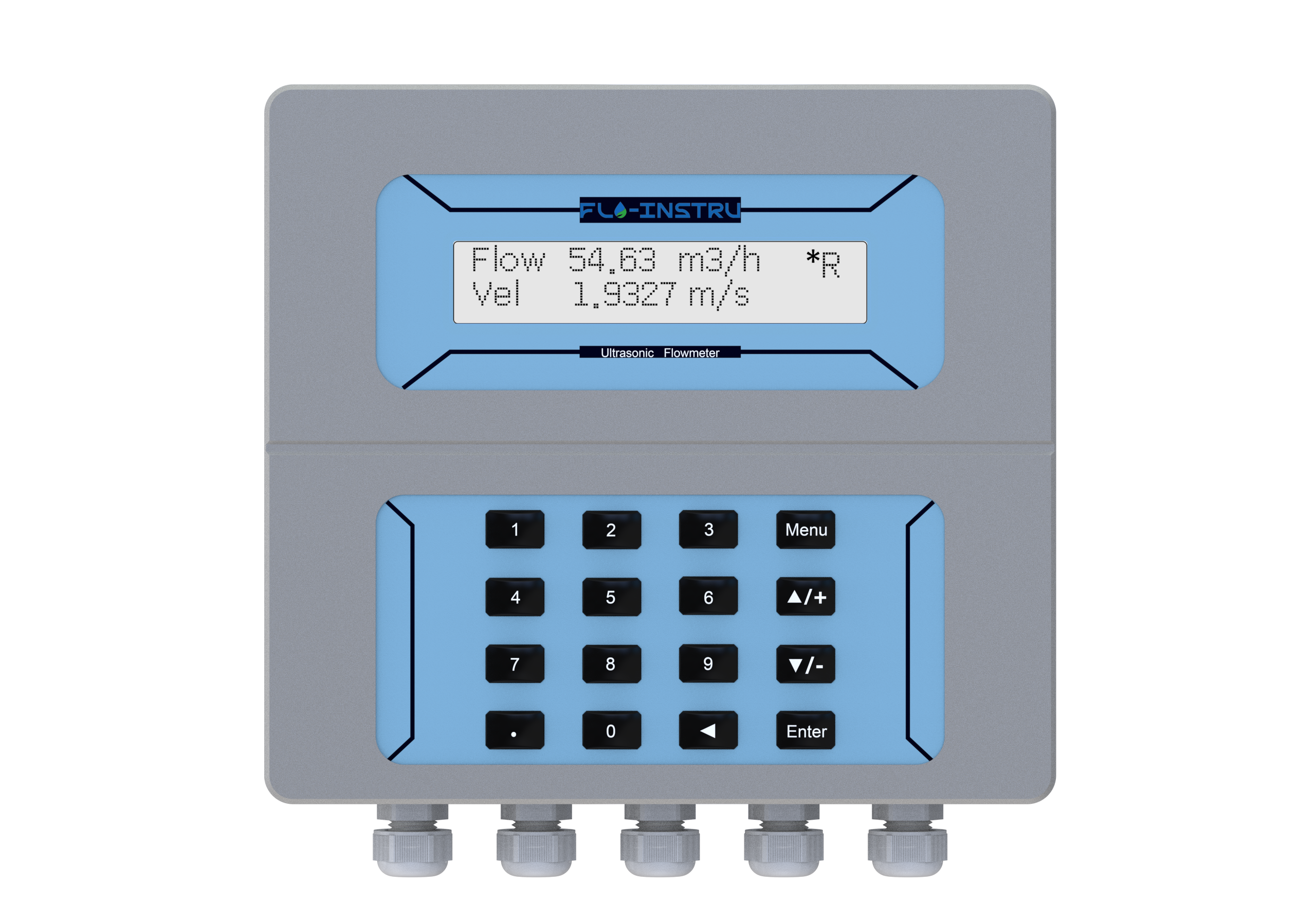

ST505 Ultrasonic Flow Meter with High Accuracy supplied by Flo-Instruments Co., Ltd. Listed under Flow Meters. Key published specifications: Keypad 16(4×4) Key With Tactile Action; Velocity Range 0 ~ ±16ft/s (0 ~ ±5m/s); Communication Interface RS485; Accuracy ±1% of measured value. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.

Technical specifications

Keypad	16(4×4) Key With Tactile Action
Velocity Range	0 ~ ±16ft/s (0 ~ ±5m/s)
Communication Interface	RS485
Accuracy	±1% of measured value
Repeatability	0.3% of measured value
Pipe Size	1" ~ 48" (25mm ~ 1200mm)
Power Supply	24V DC
Display	(20×2), alphanumeric, backlit LCD
Communication	RS485
Transmitter	Die-cast aluminum, IP65, CNC machined
Temperature	Transmitter: -40℉~140℉ (-40℃~60℃) Transducer: 32℉~140℉ (0℃~60℃) Standard
Humidity	Up to 99% RH, non-condensing
Certification	CE; ISO9001
Analog output	4~20mA, max load 750Ω
Pulse output	0~9999Hz, OCT (min. and max. frequency adjustable)
Standard/maximum cable length	30ft/1000ft (9m/305m)
Liquid Temp.	32℉~140℉ (0℃~60℃) (Standard)
Standard cable length	33ft (10m)
