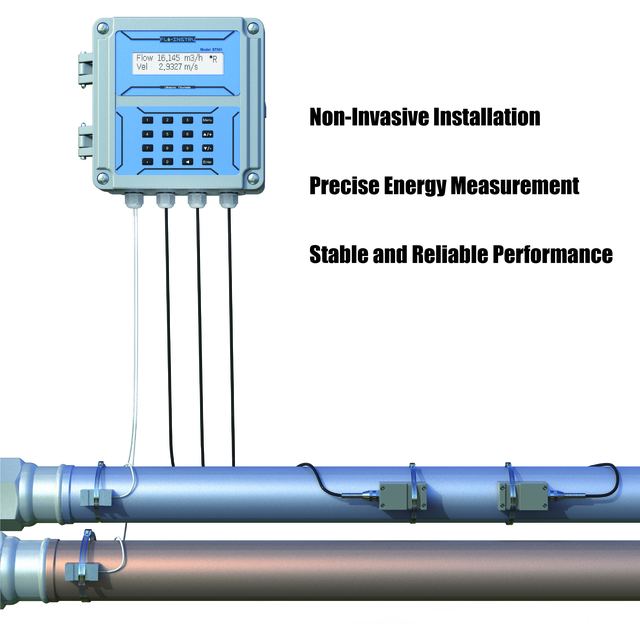

ST502 Ultrasonic Energy Meter with PT100 and RS485

Model ST501

ST502 Ultrasonic Energy Meter with PT100 and RS485

Overview

Flo-Instruments Co., Ltd in Shenzhen, Guangdong lists ST502 Ultrasonic Energy Meter with PT100 and RS485 under Flow Meters. Published figures include pipe size DN25-DN1200, power supply 24V DC and velocity range 0.03 ~±16ft/s (0.01~±5m/s).

Technical specifications

Pipe SizeDN25-DN1200
Power Supply24V DC
Velocity Range0.03 ~±16ft/s (0.01~±5m/s)
Repeatability0.3% of measured value
Time Unit/Day/Hour, /Min, /Sec
Keypad16(4×4) key with tactile action
Display20×2 lattice alphanumeric, back lit LCD
HumidityUp to 99% RH, non-condensing
TransmitterAluminum alloy, IP65
TransducerEncapsulated design, IP68
Transducer cableStandard cable length: 33ft (10m)
WeightTransmitter: approximately 0.7kg; Transducer: approximately 0.4kg
CertificationCE; ISO9001
Analog output4~20mA, max load 750Ω
Pulse output0~9999Hz, OCT (min. and max. frequency adjustable)
Standard cable length33ft (10m)
