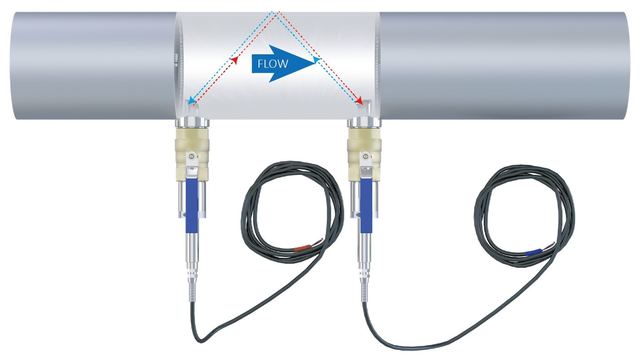

Insertion Ultrasonic Flowmeter with Transit Time Tech

Model ST501

Insertion Ultrasonic Flowmeter with Transit Time Tech

Overview

Insertion Ultrasonic Flowmeter with Transit Time Tech, listed by Flo-Instruments Co., Ltd in Shenzhen, Guangdong. Power supply 24V DC, velocity range 0.03 ~±16ft/s (0.01~±5m/s) and pipe size DN25-DN1200 are among the specifications published.

Technical specifications

Power Supply24V DC
Velocity Range0.03 ~±16ft/s (0.01~±5m/s)
Pipe SizeDN25-DN1200
Repeatability0.3% of measured value
Flow UnitCubic Meters(m³), Liters(l), USA Gallons(gal)
Time Unit/Day/Hour, /Min, /Sec
Keypad16(4×4) key with tactile action
Display20×2 lattice alphanumeric, back lit LCD
Temperature RangeTransmitter: 32℉~140℉ (0℃~60℃) Transducer: -40℉~176℉ (-40℃~80℃)
HumidityUp to 99% RH, non-condensing
TransmitterAluminum alloy, IP65
TransducerEncapsulated design, IP68
Transducer CableStandard cable length: 33ft (10m)
WeightTransmitter: approximately 0.7kg; Transducer: approximately 0.4kg
CertificationCE; ISO9001
Standard cable length33ft (10m)
