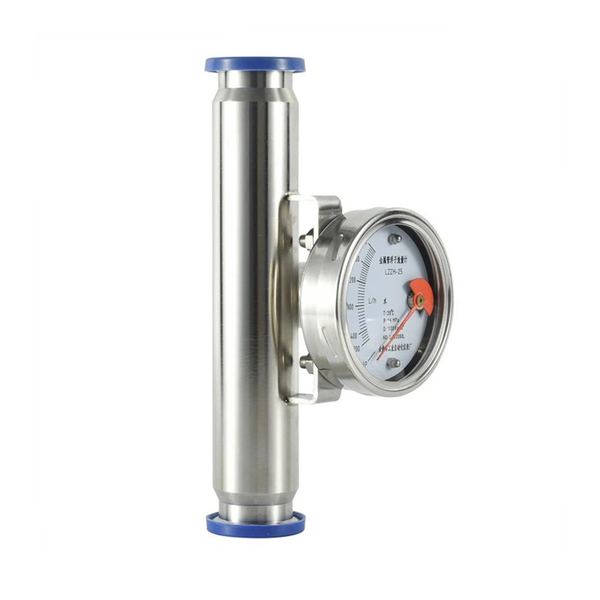

High Temperature Flow Meter
Overview
High Temperature Flow Meter, listed under Flow Meters by Yuyao Kingtai Instrument Co.,LTD in Ningbo, Zhejiang. Published figures include measure range Water(20℃)(2.5-10000)L/h, fluid working pressure DN15-DN50: 4.0Mpa DN80-DN150: 1.6Mpa and working pressure of couting 1.6Mpa.
Technical specifications
| Measure Range | Water(20℃)(2.5-10000)L/h |
|---|---|
| Fluid Working Pressure | DN15-DN50: 4.0Mpa DN80-DN150: 1.6Mpa |
| Working Pressure of Couting | 1.6Mpa |
| Fluid Working Temperature | -80℃-+200℃(PTFE≤+85℃ (For Model PTFE ≤+85℃) |
| Medium Viscidity | DN15≤5mPa.S; DN25-DN100≤250m Pa.S |
| Electricity Singal Output | Output Signal: (4-20mA) |
| Restrict Alarm | Power Supply: ≤24(±10%)VDC |
| Explosion-Proof Gr | EXIbIICT5 |
| Output Signal | (4-20mA) |
| Power Supply | (13-30)VDC |
| Power Supply Consume | ≤250mW |
| Power Loss | ≤3W |
