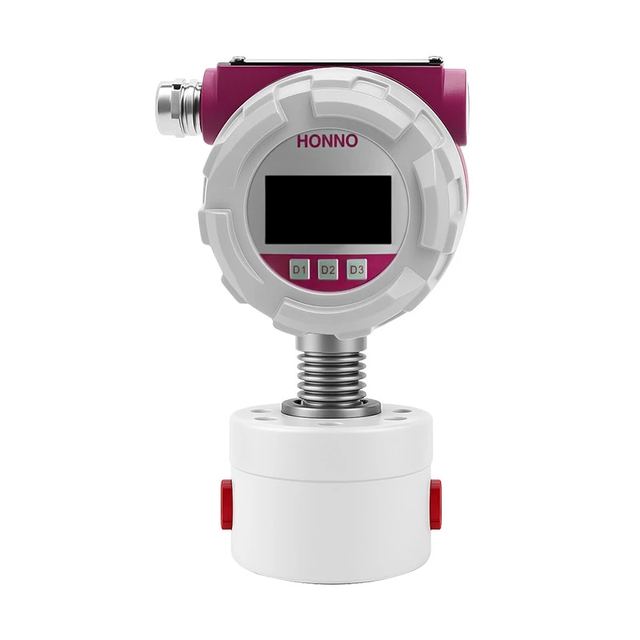

Gear Flow Meter
Overview
Gear Flow Meter supplied by Hongnuo (shenyang) General Machinery Co., Ltd. Listed under Flow Meters. Key published specifications: Accuracy 0.5%R; Type LC; Pressure 1.0MPa, 6.3MPa; Temp. Resist. -20-80℃,-20℃~200℃(Optional). Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Accuracy | 0.5%R |
|---|---|
| Type | LC |
| Pressure | 1.0MPa, 6.3MPa |
| Temp. Resist. | -20-80℃,-20℃~200℃(Optional) |
| Connection Methods | Flange, thread, clamp |
| Output Signal | Pulse/4~20mA/0~5V/RS485 |
| Power Supply | 24V DC & 3.6V Lithiun Battery |
| Signal output | 4mA~20mA, OH2~10kHz (pulse signal) |
| Communication Method | RS485/MODBUS Or HART |
