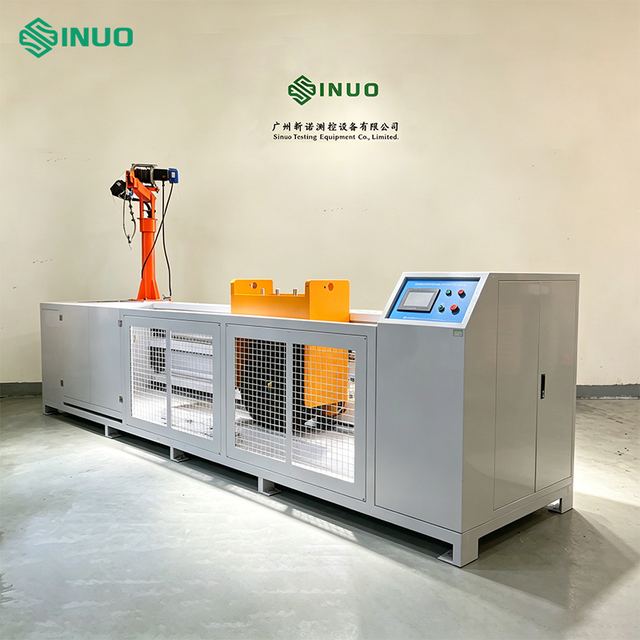

UL 2594 Cla.58 EV Charging Plug Drive-Over 4893N Test Equipment
Overview
UL 2594 Cla.58 EV Charging Plug Drive-Over 4893N Test Equipment supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Test station Single station; Drive over stroke 0~2.0m; Drive over speed (8±2)km/h, speed adjustable by motor; Drive over tire pressure (220±10) kPa or (218±13)kPa. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Test station | Single station |
|---|---|
| Drive over stroke | 0~2.0m |
| Drive over speed | (8±2)km/h, speed adjustable by motor |
| Drive over tire pressure | (220±10) kPa or (218±13)kPa |
| Control Mode | PLC & Program |
| Load Carrying | 4890/5000/11000N |
| Tire Pressure | (220±10) KPa |
| Drive System | Motor + Worm Gear System |
| Applied Standard | UL 2594 & IEC 62196-1 |
| Power supply | Three phase AC480V±10%/60Hz, power 15KW |
| Overall dimensions | approximately W4700*D1300*H3000mm |
| Weight | approximately 2400kg |
