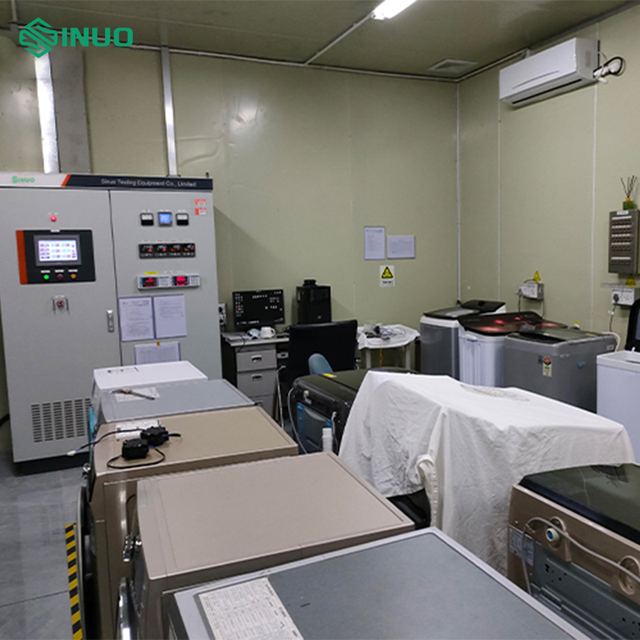

4 Stations Washing Machine Consumption Test System
Overview
4 Stations Washing Machine Consumption Test System supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: UUT Type Washing Machines; Horizontal Temperature Nonuniformity ≤±1°C (10°C-45°C); Vertical Temperature Gradient ≤±0.5°C/m (16°C-45°C); Wind Speed ≤0.25m/s. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| UUT Type | Washing Machines |
|---|---|
| Horizontal Temperature Nonuniformity | ≤±1°C (10°C-45°C) |
| Vertical Temperature Gradient | ≤±0.5°C/m (16°C-45°C) |
| Wind Speed | ≤0.25m/s |
| Temperature uniformity | Horizontal temperature nonuniformity: ≤±1°C (10°C-45°C) |
| Water temperature stability | ≤±2.0°C |
| Water hardness range | (0.1～3.0 mmol/L)±0.2mmol/L, manually adjusted |
| Temperature acquisition | ±0.1°C, resolution: 0.01°C |
| Humidity control accuracy | ±3%RH |
| Current | 0-20A, accuracy: ≤±0.5% |
| Voltage | 0-300V, accuracy: ≤±0.5%, 0-330V, accuracy: ≤±0.5% |
| Power | 0-4kW, accuracy: ≤±0.5% |
| Water supply pressure, accuracy | ≤±0.02MPa |
