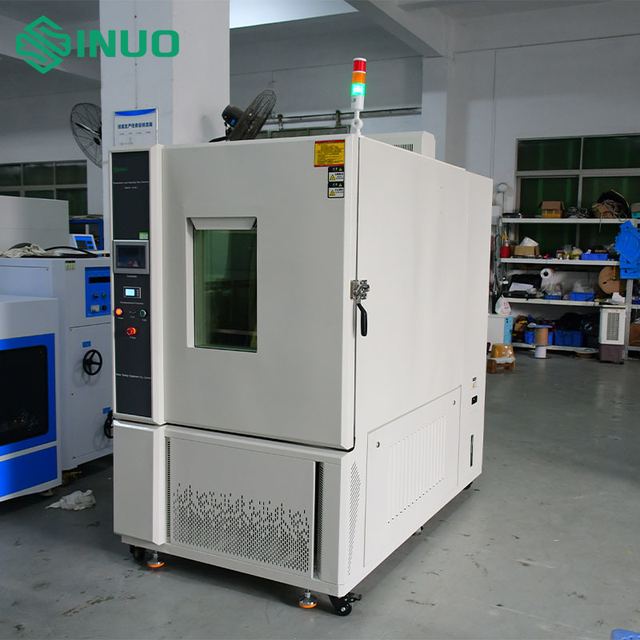

IEC 62133 Battery Explosion-Proof Constant Temp & Humi Test Chamber -40℃~150℃
Overview
IEC 62133 Battery Explosion-Proof Constant Temp & Humi Test Chamber -40℃~150℃ supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Heating rate -40℃→+150℃ ≤2-3℃/min (Average No-load); Cooling rate +150℃→-40℃ ≤1℃/min (Average No-load); Working noise A-weighted sound level ≤ 70 dB(A); Operation mode Air-cooled mechanical compression single-stage refrigeration. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Heating rate | -40℃→+150℃ ≤2-3℃/min (Average No-load) |
|---|---|
| Cooling rate | +150℃→-40℃ ≤1℃/min (Average No-load) |
| Working noise | A-weighted sound level ≤ 70 dB(A) |
| Operation mode | Air-cooled mechanical compression single-stage refrigeration |
| Refrigerants | R404a (ozone depletion index 0) |
| Humidity Range | (20～98)%RH |
| Temperature Range | -40℃ to +150℃ |
| Outer Wall Material | A3 coated steel plate |
| Inner Wall Material | Brushed SUS#304 stainless steel plate |
| Chamber Insulation | 100mm high-temperature resistant rigid polyurethane foam |
| Door Insulation | 100mm high-temperature resistant rigid polyurethane foam |
| Lead Wire Hole | φ100mm, 1 piece |
| Display | 7-inch color touch screen |
| Control Modes | Program/fixed value operation |
| Program Capacity | 120 program groups, 12,000 segments total |
