Electric Blanket Heating Wire Flexing Test Apparatus 0.33m/S
Overview
Electric Blanket Heating Wire Flexing Test Apparatus 0.33m/S supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Workstation Single station; Control and Operation PLC control, touchscreen operation; Load Current 50mA; Test Speed 0.33 m/S. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Workstation | Single station |
|---|---|
| Control and Operation | PLC control, touchscreen operation |
| Load Current | 50mA |
| Test Speed | 0.33 m/S |
| Test Stroke Length | 1000mm |
| Test Frequency | 0 - 999,999, pre-set |

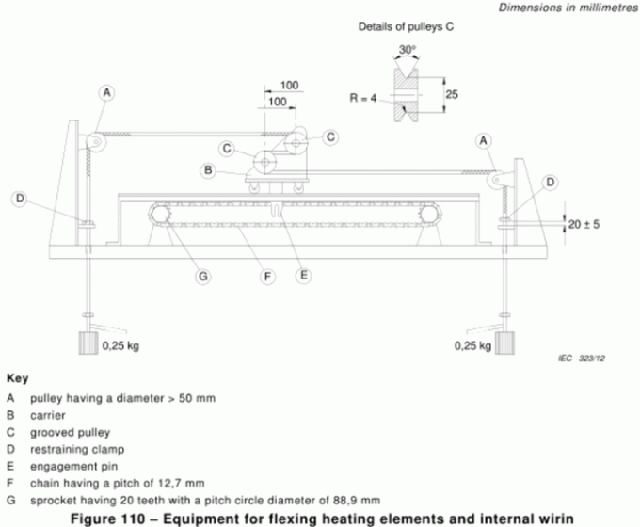

| Applied Standard | IEC60335-2-17: 2019 Figure 110 |
| Control Method | PLC Control, Touchscreen Operation |
| Testing Speed | 0.33 Meter Per Second |
| Dimensions | Approximately 1400 × 800 × 1450 mm (W×D×H) |
| Weight | 180kg |
| Power Supply | AC220V±10%/50-60Hz |
