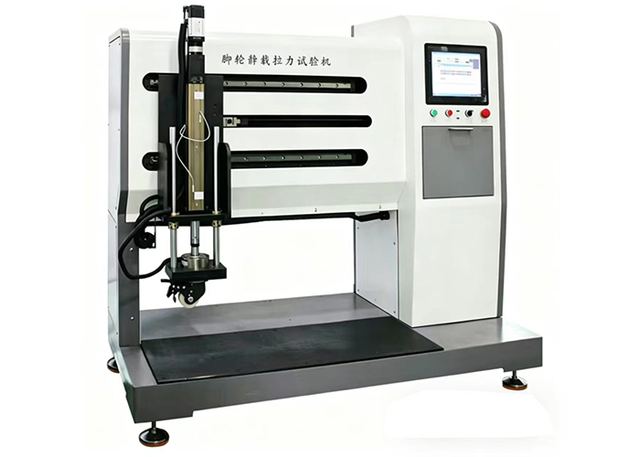

EN 12527 Caster Starting Force Tester for Rolling Resistance & Static Load Test
Overview
EN 12527 Caster Starting Force Tester for Rolling Resistance & Static Load Test supplied by Sinuo Testing Equipment Co. , Limited. Key published specifications: Control System PLC control + 7-inch color touch screen; Test Station Single station; Suitable Caster Diameter Ø50 mm - Ø200 mm; Vertical Load 0-10000 N stepless adjustable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Control System | PLC control + 7-inch color touch screen |
|---|---|
| Test Station | Single station |
| Suitable Caster Diameter | Ø50 mm - Ø200 mm |
| Vertical Load | 0-10000 N stepless adjustable |
| Horizontal Force | Max. 5000 N |
| Force Accuracy | ±1% F.S. |
| Horizontal Stroke Speed | 0-300 mm/min stepless adjustable |
| Dimensions (L×W×H) | 1500×800×1600 mm |
| Power Supply | AC 220 V, 50/60 Hz |
| Caster Diameter | Ø50 Mm – Ø200 Mm |
| Stroke Speed | 0–300 Mm/min |
