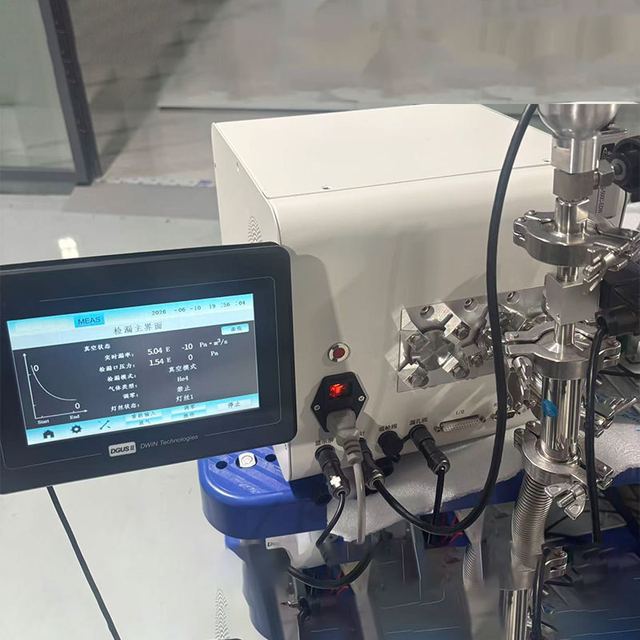

Modular Lithium Battery Helium Mass Spectrometer Leak Detector
Overview
Modular Lithium Battery Helium Mass Spectrometer Leak Detector, listed by Sinuo Testing Equipment Co. , Limited in Guangzhou, Guangdong. Published figures include product model SN-ANHMS-1000, power supply AC 220V±10%, 50Hz and current consumption < 2A.
Technical specifications
| Product Model | SN-ANHMS-1000 |
|---|---|
| Power Supply | AC 220V±10%, 50Hz |
| Current Consumption | < 2A |
| Fuse | 10A*2 (Diameter 5*20mm) |
| Inlet Flange | 2*DN16 KF+1*DN25 KF |
| Dimensions | 308*283*319 (W*H*D, mm) |
| Detectable Gases | He4, He3, H2 |
| Calibration Leak | Microchannel type, 2.0 * 10⁻⁸ Pa·m³/s |
| Start-up Time | ≤ 3min |
| Response Time | ≤ 1s |
| Backup Pump Speed | > 1.0 L/s, ultimate vacuum < 10 Pa |
| Molecular Pump Speed | He4, 2.5 L/s (Split Flow 80) |
| Maximum Allowable Pressure | 200~1800 Pa |
| Unit of Measurement | Pa.m³/s, mbar.L/s, Torr.L/s, PPm |
| Language | Chinese/English/German |
| Display Screen | LCD, 4.3-inch color display, touchscreen |
| Communication Interface | RS232, I/O, analog input |
| Functional Configuration | Vacuum/suction Gun Mode/dual Tracer Gas |
