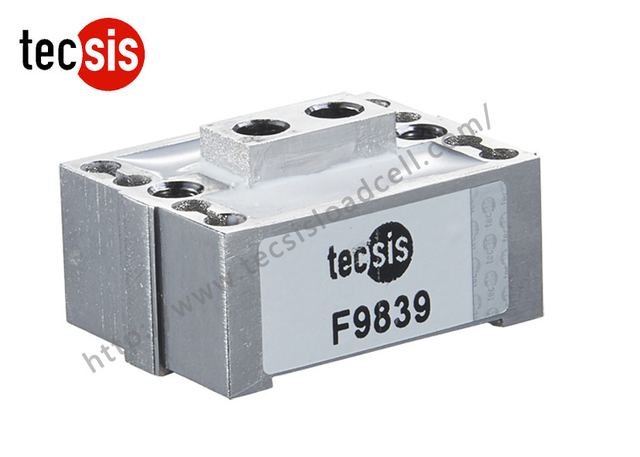

Two Dimensional Load Cell Force Sensor Load Cell Stainless Steel Sensor
Model F9839
Overview
Two Dimensional Load Cell Force Sensor Load Cell Stainless Steel Sensor supplied by Shenzhen) Sensors Co., Ltd. Key published specifications: Type Square; Material Stainless Steel; Capacity 50kg; Oem/Odm Acceptable. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Type | Square |
|---|---|
| Material | Stainless Steel |
| Capacity | 50kg |
| Oem/Odm | Acceptable |
| Protection Class | IP65 |
| 3 wires | 0~5V, 1~5V, 0~10V |
| 4 wires | 0~10mV |
| Comprehensive accuracy | 0.25~0.5% F.S. |
| Power supply | 5~10VDC( Sensor) 12~30VDC(Transmitter) |
| Medium temperature | -20ºC~85ºC -20ºC~150ºC(Option) |
| Ambient temperature | -20ºC~85ºC |
| Load resistance | Voltage type ≥50kΩ Current type ≤800Ω |
| Insulation | ≥5000MΩ / 50VDC |
| Response time | 10ms |
| Long term stability | 0.1% F.S./ Year |
| Electrical interface | M12×1 Direct wireØ5x1500mm Hessman lines Customized |
| Thread connection | M12×1,Check the selection table |
| Standard | carton |
| Model | P3805 |
| Technical parameters | Specifications |
