Overview

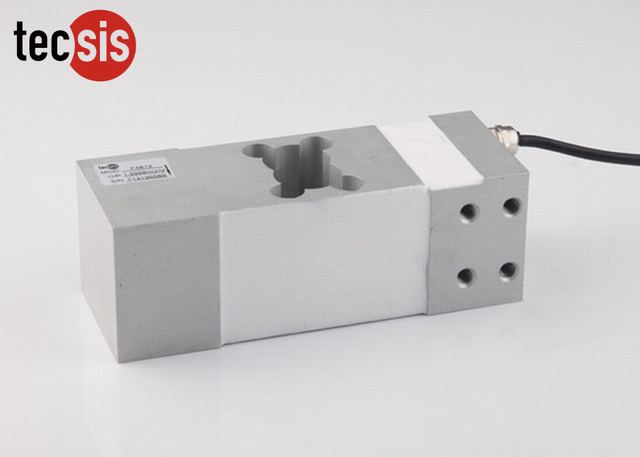

Through Hole Precision Force Sensor Load Cell Transducer Scale Sensor, listed under Force Sensors by Shenzhen) Sensors Co., Ltd in Shenzhen, Guangdong. Type Single Point Load Cell, material Aluminum Alloy and capacity 50kg~650kg are among the specifications published.

Technical specifications

Type	Single Point Load Cell
Material	Aluminum Alloy
Capacity	50kg~650kg
Oem/Odm	Acceptable
Protection Class	IP65
Rated output	2.0±10%mV/V
Zero balance	±2% F.S.
Non-linearity	0.02% F.S.
Hysteresis	0.02% F.S.
Repeatability	0.02% F.S.
Creep (30min)	0.02% F.S.
Temp. effect on output	0.025% F.S. / 10ºC
Temp. effect on zero	0.025% F.S. / 10ºC
Insulation	≥5000MΩ/ 100VDC
Recommended excitation	10V
Maximum excitation	15V
Compensated temp. range	- 10~40ºC
Operation temp. range	- 20~60ºC
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Cable size	Ø5×2000 mm
Platform size	450×550mm
Standard	carton
Model	F4812
Technical parameters	Specifications
