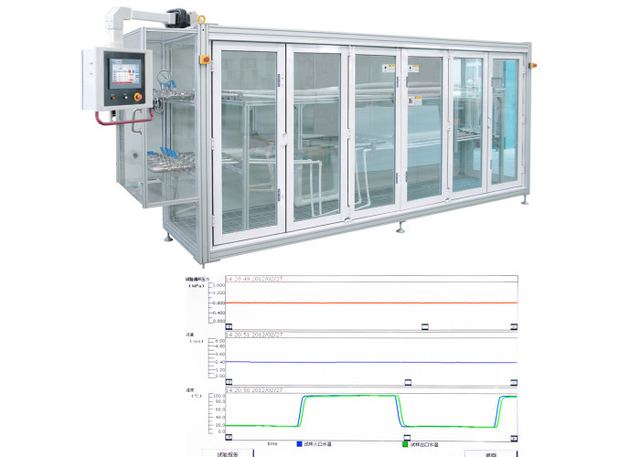

PLC Controlled Pipeline Testing Equipment for Pressure and Temperature Cycles
Model CHW-63M
Overview
PLC Controlled Pipeline Testing Equipment for Pressure and Temperature Cycles supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Display Mode Touch Screen Display; Velocity Of Flow >0.9m/s; Number Of Cycles Any Number Of Times From 0 To 100,000. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Display Mode | Touch Screen Display |
| Velocity Of Flow | >0.9m/s |
| Number Of Cycles | Any Number Of Times From 0 To 100,000 |
| Temperature Control Accuracy | Set Value ±0.5°c |
| Control Method | Plc Control |
| Temperature Control Range | 20°c To Room Temperature (room Temperature> 20°c) |
| Standard Number | Standard Name |
| Pressure Control Range | 0.40 MPa ~ 1.20 MPa |
| Maximum Total Measured Cross-sectional Area | 6200 mm² (2 × φ63); customizable |
| Circulation Time (Hot/Cold Water) | 600s to 1800s (adjustable) |
| Hot/Cold Water Alternating Time | ≤60s |
| Maximum Straight Pipe Section Length | 3700mm |
| Automatic Water Supply Pressure | >0.05 MPa |
| Cold Water Tank Temperature Range | 20°C to room temperature |
| Cold Water Tank Temperature Accuracy | Set value ±0.5°C |
| Hot Water Tank Temperature Range | Room temperature to 95°C |
| Hot Water Tank Temperature Accuracy | Set value ±0.5°C |
| Power Supply | 380(1-15%)VAC ~ 380(1+10%)VAC 50Hz 25kW |
| Outline Dimensions | L5200 mm × W3200 mm × H2100 mm |
| Installation Dimensions | L6000 mm × W4000 mm × H3000 mm |
| Total Weight | 3210 kg |
| Component | Quantity |
| Industrial touchscreen computer | 1 unit |
| Cold water storage cistern | 1 unit |
| Hot water tank | 1 unit |
