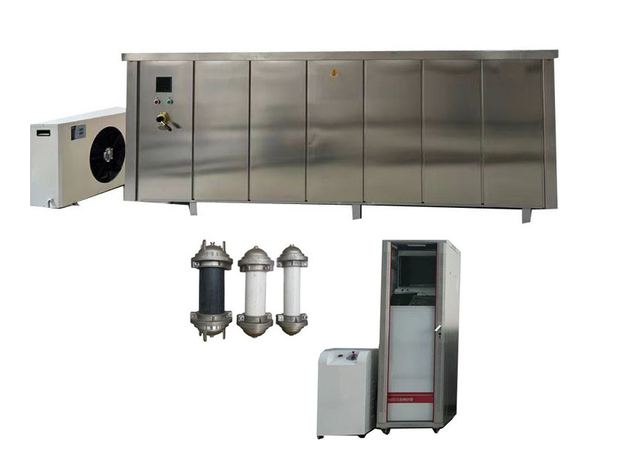

0-20MPA
Model XGY-20C
Overview
0-20MPA supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; End Caps Φ8-1800mm; Display LCD; Test Curve Pressure-time And Pressure-temperature. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| End Caps | Φ8-1800mm |
| Display | LCD |
| Test Curve | Pressure-time And Pressure-temperature |
| Safety Protection | Over Pressure/Over Temperature |
| Test Mode | Automatic |
| Test Medium | Water |
| Customized Support | OEM |
| Certificate | CE, ISO |
| Model | XGY-20C |
| Diameter Range | Φ8-1800mm |
| Control Mode | Micro-control, industrial PC control |
| Display Mode | Industrial PC LCD color display |
| Storage Mode | PC storage |
| Print Mode | Color printer output |
| Test Pressure Range | 0.1-20MPa |
| Display Resolution | 0.01MPa |
| Working Range | 5%~100%FS |
| Timer Range | 0~10000h |
| Timer Resolution | 1s |
| Power | 380V 50Hz three-phase four-wire 1.5KW |
| End Caps Models | from Φ16 to 630mm |
| Dimensions (three stations) | 715×625×1700(mm) or others |
| Pipe Diameter Range | Φ8-1800mm |
| Pressure Range | 0-200Bar, 0-20MPA |
