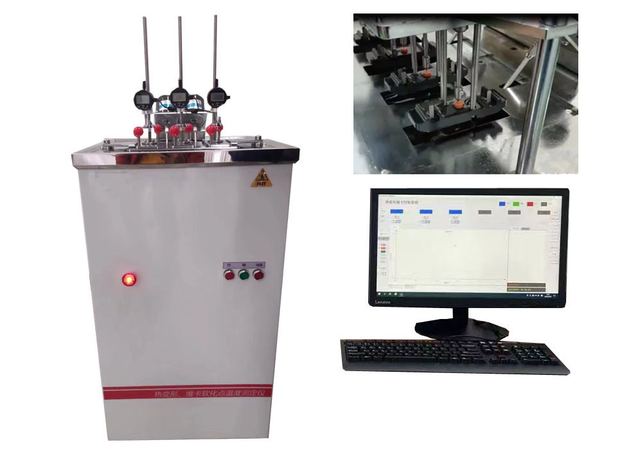

HDT VICAT Testing Machine for Heat Distortion & Softening Point Analysis
Model XRW-300F
Overview
HDT VICAT Testing Machine for Heat Distortion & Softening Point Analysis supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Heating Rate 120℃/h ±10℃/h , 50℃/h ±5℃/h; Deformation Measurement Range -1.00～10.00mm; Span Of Sample Supports 100mm, 64mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Heating Rate | 120℃/h ±10℃/h , 50℃/h ±5℃/h |
| Deformation Measurement Range | -1.00～10.00mm |
| Span Of Sample Supports | 100mm, 64mm |
| Maximum Deformation Measurement Error | 0.001mm |
| Current Source | 4.5KW, 220VAC, 50HZ |
| Temperature control range | Room temperature ～300℃ |
| Test stations | 3 stations |
| Loading | (10±0.2)N, (50±1.0)N |
| Test frame lifting mode | Automatic rising-lowering |
| Formal measurement measuring tool | Digital display dial gauge |
| Span of sample support | 64mm, 100mm |
| Heating medium | Silicone oils, glycerine, ethylene glycol |
| Equipment size | 840mm×570mm×1360mm |
| Mainframe type | Table type |
| Controll | By PLC |
