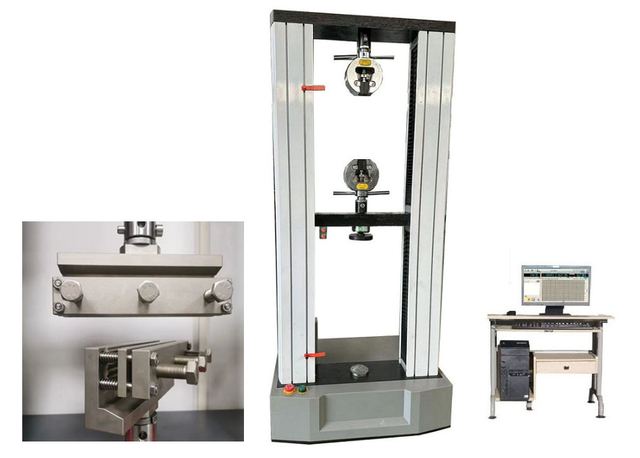

10KN Electronic Universal Testing Machine for Material Analysis
Model XWW-10KN
Overview
10KN Electronic Universal Testing Machine for Material Analysis supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Capacity 10KN; Force-measuring Range 0.4%~100%FS; Safety Protection Overload, Over-travel, Over-voltage, Over-current. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Capacity | 10KN |
| Force-measuring Range | 0.4%~100%FS |
| Safety Protection | Overload, Over-travel, Over-voltage, Over-current |
| Test Speed Range | 0.001-500mm/min |
| Model | XWW-10KN |
| Type | Double screw |
| Max. Load | 10KN |
| Accuracy Grade | 0.5 grade |
| Crossbeam Speed Range | 0.001-500mm/min |
| Total Crossbeam Valid Travel | 800mm |
| Power Supply | AC220V; 400w |
| Weight | 290Kg |
| Control mode | Cumputer |
| Max. Force | 20KN |
| Standard | ISO7500-1, ISO5893,ISO9969, ASTMD638\695\790 |
