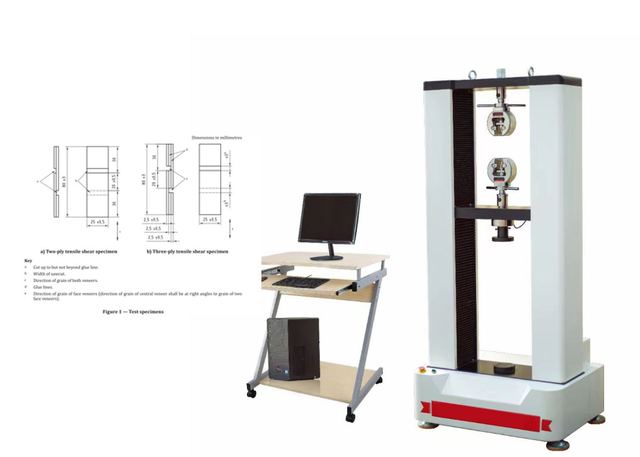

10KN Electronic Universal Testing Machine for Material Strength Analysis
Model XWW-10KN
Overview
Beijing Jinshengxin Testing Machine Co., Ltd in Beijing lists 10KN Electronic Universal Testing Machine for Material Strength Analysis under Water Testing & Analysis. Certification ISO9001, CE, capacity 10KN and force-measuring range 1%~100%FS are among the specifications published.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Capacity | 10KN |
| Force-measuring Range | 1%~100%FS |
| Safety Protection | Overload, Over-travel, Over-voltage, Over-current |
| Test Space | 400*900mm |
| Model | XWW-10KN |
| Type | Double screw |
| Max. Load | 10KN |
| Accuracy Grade | 0.5 grade |
| Range of force control rate | 0.005--5%FS/S |
| Relative error of force control rate | Within±1% of set value |
| Measurement range (Metal extensometer) | 0.2-100%FS |
| Range of deformation rate | 0.02~5%FS/S |
| Error of indication | Within±0.5% |
| Measurement range (Large deformation) | 5mm-1000mm |
| Resolution | 0.001mm |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.001-500mm/min |
| Test width | 400mm (or according needing) |
| Total Crossbeam Valid Travel | 900mm |
| Clamps | Compression plate |
| PC System | Control force, displacement and deformation |
| Power Supply | AC220V; 400w |
| Weight | 280Kg |
| Control mode | Cumputer |
| Max. Force | 20KN |
