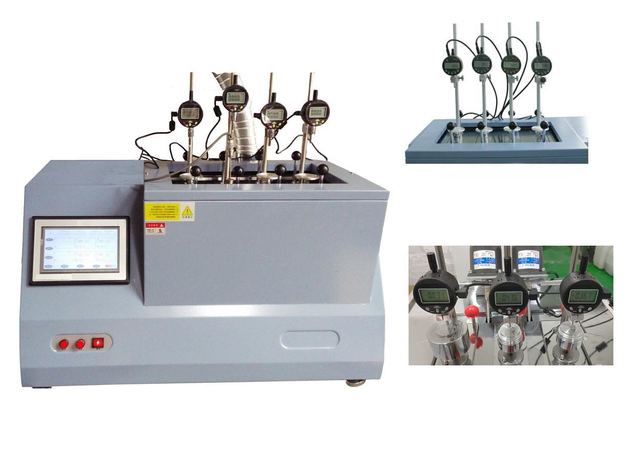

HDT VICAT Testing Machine for Thermoplastic Deformation Analysis
Model RV-300C
Overview
HDT VICAT Testing Machine for Thermoplastic Deformation Analysis supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Heating Rate 120±10℃/h 、 50±5℃/h; Deformation Measurement Range 0～3mm; Span Of Sample Supports 64mm, 100mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Heating Rate | 120±10℃/h 、 50±5℃/h |
| Deformation Measurement Range | 0～3mm |
| Span Of Sample Supports | 64mm, 100mm |
| Maximum Deformation Measurement Error | 0.005mm |
| Current Source | 4KW, 220VAC, 50HZ |
| Temperature Control Range | Room Temperature to 300℃ |
| Accuracy of Deformation Measurement | ±0.01mm |
| Load Bar and Press (Needle) Weight | 70g |
| Supply Voltage | 220V 20A 50Hz |
| Heating Power | 4kW |
| Mainframe type | Table type |
| Controll | By PLC |
| Heating Rate B | 120℃/h |
