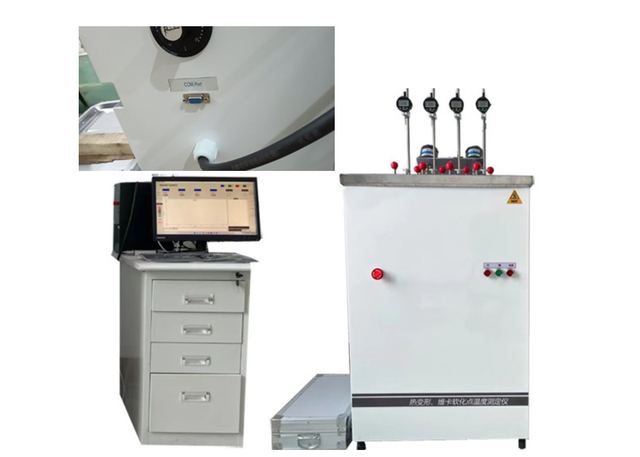

HDT VICAT Testing Machine for Plastic Softening Temperature
Model XRW-300AT
Overview
HDT VICAT Testing Machine for Plastic Softening Temperature supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Heating Rate 120℃/h 、 50℃/h; Deformation Measurement Range -1.00～10.00mm; Span Of Sample Supports 64mm, 100mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Heating Rate | 120℃/h 、 50℃/h |
| Deformation Measurement Range | -1.00～10.00mm |
| Span Of Sample Supports | 64mm, 100mm |
| Maximum Deformation Measurement Error | 0.001mm |
| Current Source | 4.5KW, 220VAC, 50HZ |
| Temperature control range | Room temperature ～300℃ |
| Test stations | 4 stations |
| Loading capacity | 10±0.2N, 50±1.0N |
| Test frame lifting mode | Automatic rising-lowering |
| Span of sample support | 100mm, 64mm |
| Thermal expansion coefficient | <0.005mm/100℃ |
| Equipment dimensions | 900mm×580mm×1400mm |
| Power requirements | 4.5KW, 220VAC, 50HZ |
| Mainframe type | Table type |
| Controll | By PLC |
