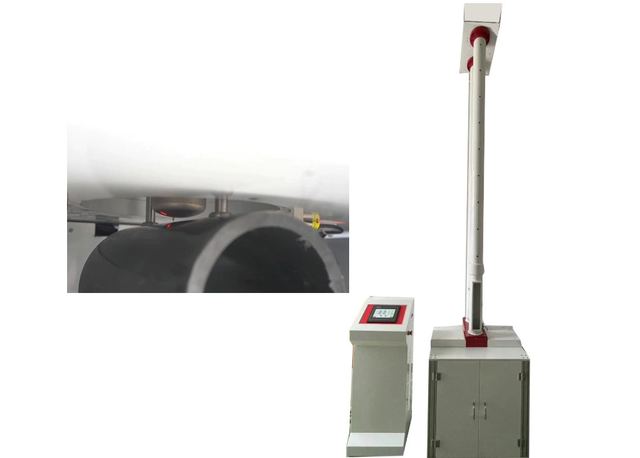

Drop Hammer Test Equipment for Impact Strength Evaluation
Model XJL-630M
Overview
Drop Hammer Test Equipment for Impact Strength Evaluation supplied by Beijing Jinshengxin Testing Machine Co., Ltd. Key published specifications: Certification ISO9001, CE; Test Range 0-400J; Drop Hammer Quality 2.7kg, 5.4kg, 9.1kg, 13.6kg; Max. Height 3000mm. Contact the supplier through the RFQ form for pricing, lead time and full datasheets.
Technical specifications
| Certification | ISO9001, CE |
|---|---|
| Test Range | 0-400J |
| Drop Hammer Quality | 2.7kg, 5.4kg, 9.1kg, 13.6kg |
| Max. Height | 3000mm |
| Power Supply | AC220V/50Hz |
| Height of the fall | 0mm-3000mm, error≤±2mm |
| Diameter of the sample | Φ630mm |
| Power source | 220VAC±10% |
| Net weight | 560kg |
| Hammerhead A | 2.75kg, 5.4kg, 9.1kg, 13.6kg |
| Hammerhead B | 2.7kg, 5.4kg, 9.1kg, 13.6kg |
| Hammerhead C | 2.7kg, 5.4kg, 9.1kg, 13.6kg |
| Hammer diameter | D25mm,D90mm, etc |
| Test Type | Drop Hammer Test |
| Travel of Working Table | 0-630mm |
| Specimen Diameter | φ10~630mm |
